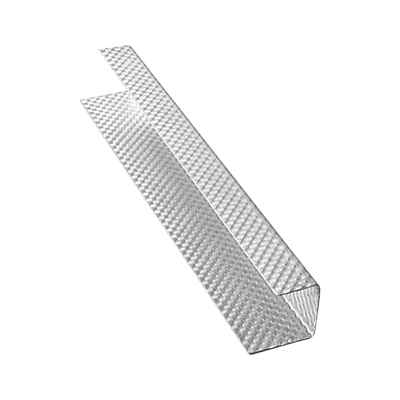

ST50 Perimeter Channel
- Metal systems conforming to cpwd schedule
- Better rigidity
- Better screw penetration
- Quick & simple to construct
Applications
ST50 Perimeter ChannelTo be fixed around the walls
Description & Details
ST50 Perimeter Channel is an integral part of USGKnauf Suspended Ceiling System. ST50 Perimeter Channel is used to fix at the periphery of the brick wall/drywall to receive end of ceiling sections and intermediate channel on top. This acts as the frame for the false ceiling. These are rolled and formed on specially designed automatic machines
- Metal systems conforming to cpwd schedule
- Better rigidity
- Better screw penetration
- Quick & simple to construct
- Knurling enhances grip between sections
- Galvanizing 120 gsm as per is277
- High-quality cold rolled steel
Documents
Product Variants & Packaging
ST50 Perimeter Channel
| Material number | Base unit of measure | Length | Width | Height | Weight |
|---|---|---|---|---|---|
00779397 | PC | 3,660 mm | 30 mm | 28 mm | 1.1 kg |
00779412 | PC | 3,660 mm | 30 mm | 28 mm | 1.09 kg |
