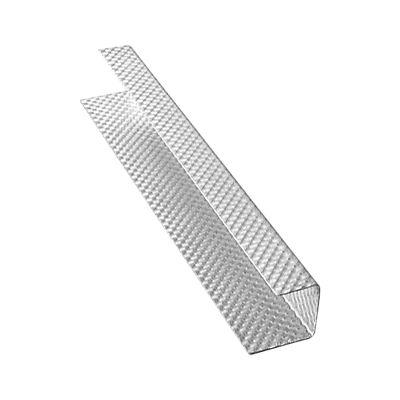

ST55 Perimeter Channel
- 0.55 mm thick profiles
- Minimum yield strength 250 mpa
- Zinc galvanizing of 120 gsm
- Dimensionally stable
Applications
ST55 Perimeter ChannelTo be fixed around the walls
Description & Details
ST50 Perimeter Channel is an integral part of USGKnauf Suspended Ceiling System. ST50 Perimeter Channel is used to fix at the periphery of the brick wall/drywall to receive end of ceiling sections and intermediate channel on top. This acts as the frame for the false ceiling. These are rolled and formed on specially designed automatic machines.
- 0.55 mm thick profiles
- Minimum yield strength 250 mpa
- Zinc galvanizing of 120 gsm
- Dimensionally stable
- Flexibility - unlimited design options
- Better screw penetration
- Safe to install
Documents
Product Variants & Packaging
ST55 Perimeter Channel
| Material number | Base unit of measure | Length | Width | Height | Weight |
|---|---|---|---|---|---|
00797508 | PC | 3,660 mm | 30 mm | 28 mm | 1.6 kg |
