Knauf Gypsum Systems

Gypsum wall and ceiling systems Knauf

German standard gypsum wall and ceiling systems with sound absorption, fire resistance, and easy installation for home, and commercial spaces

Explore our products with our Download Centre

Knauf StandardShield 12mm

Knauf MoistShield 12mm

Knauf Safeboard

System	Description	Moisture Protection	X-Ray Shield	Board Types	Profiles

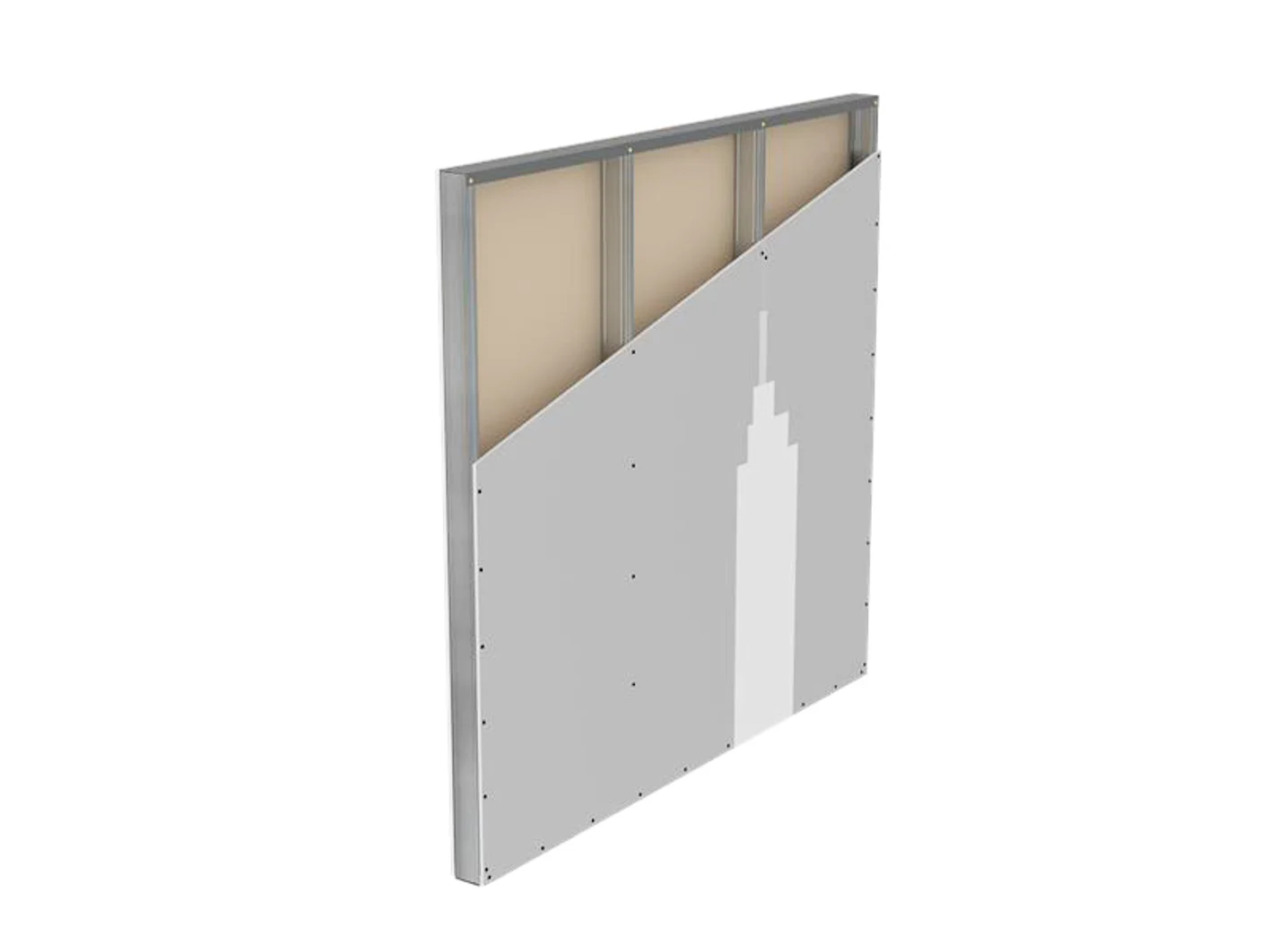

Knauf Standard Partition	A standard drywall partition system for interior areas.			Knauf StandardShield 12mm	Knuaf KW50 / Knauf KW40
Knauf Moisture Resistant	A partition system enhanced with moisture resistant property for an area that need an extra moisture resistant.	Certified TIS 219-2566 and ASTM C1396		Knauf MoistShield 12mm	Knuaf KW50 / Knauf KW40
Knauf X-Ray Shield Partition	A partition system specially designed to be used as a x-ray shielding, significantly reduces the amount of lead needed.		Passed DIN EN 61331-1 standard test	Knauf Safeboard	Knuaf KW50

Knauf StandardShield 9mm :

Knauf MoistShield 9mm :

System	Description	Moisture Protection	Board Types	Profiles

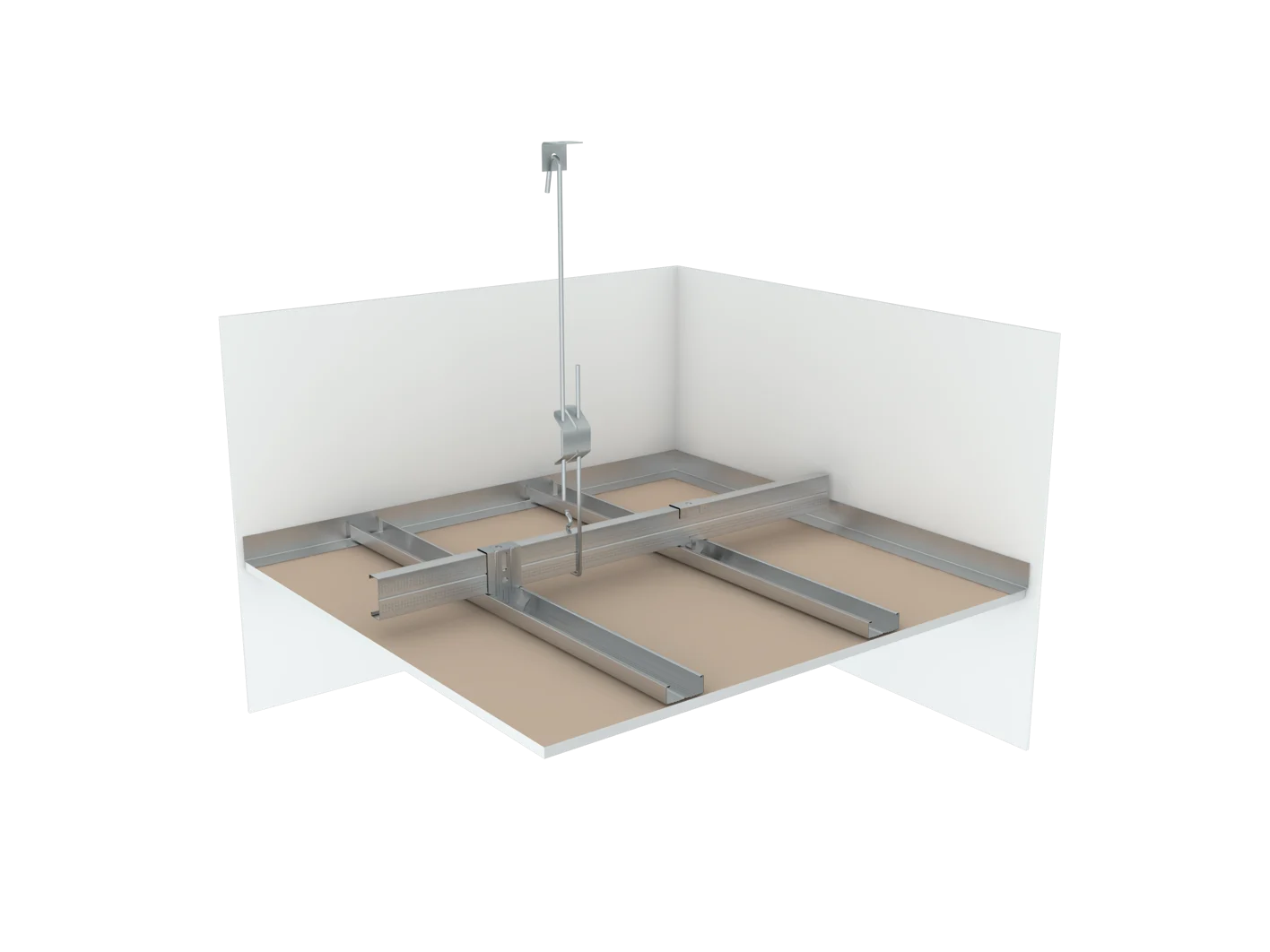

Knauf Standard Concealed Ceiling	A standard concealed ceiling system by Knauf for interior areas.		Knauf StandardShield 9mm	Knuaf KC50 / Knauf KC40
Knauf Moisture Resistant Concealed Ceiling	A conncealed ceiling system enhanced with moisture resistant property for an area with high humidity.	Certified TIS 219-2566 and ASTM C1396	Knauf MoistShield 9mm	Knuaf KC50 / Knauf KC40

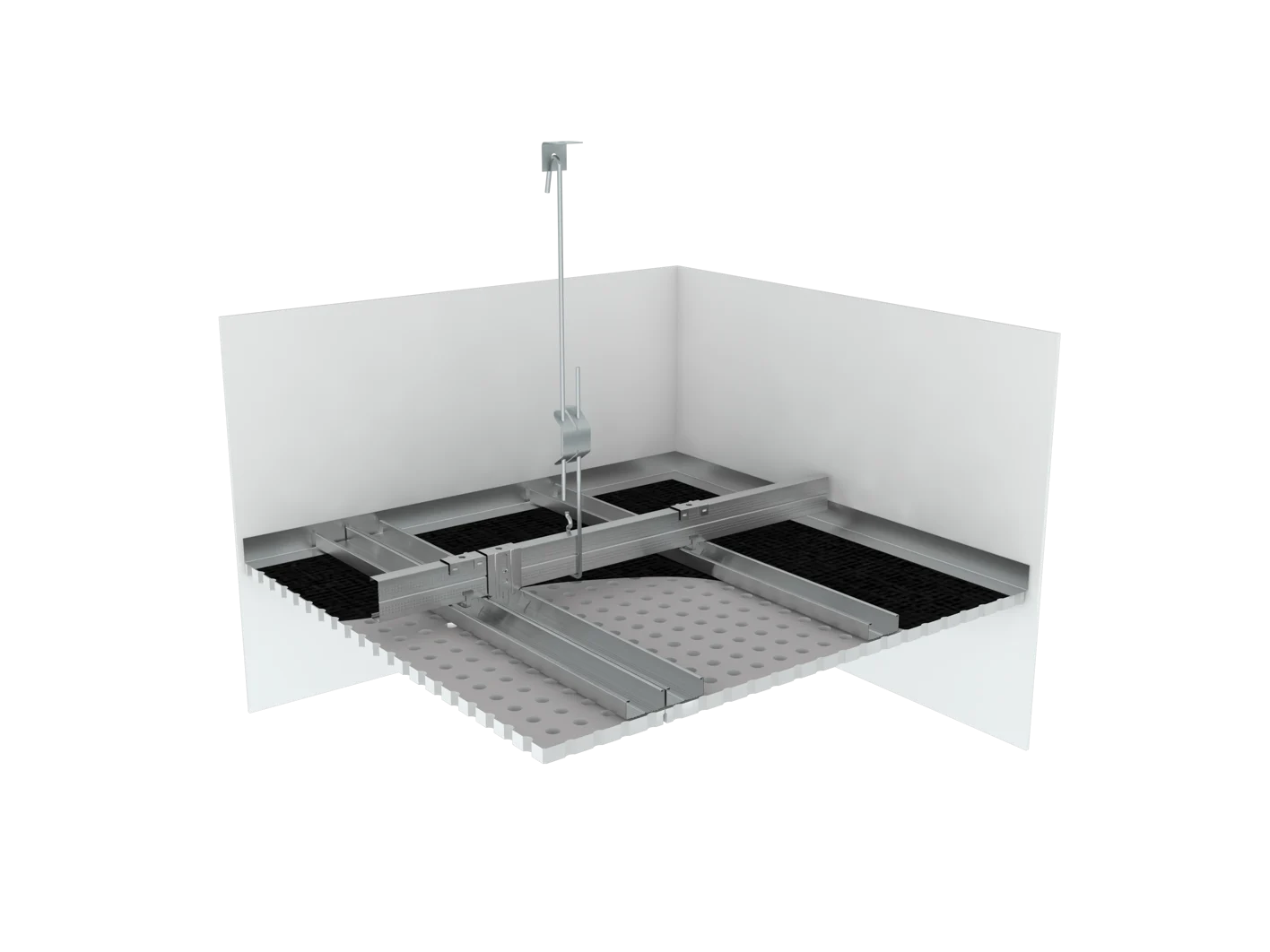

Monolithic, seamless look.
Various perforation patterns for architectural design flexibility.
Acoustic performance up to NRC 0.80.
Improve indoor climate with Cleaneo air purifying technology.
Repaintable without the loss of acoustic performance.
No visible joints after finishing UFF edge profile with Uniflott Jointing Compound.

Pattern	Insulation	Cavity Depth	NRC	Cross Furring Channel Spacing
Circular 8/18 R	Nil	400	0.60	333 mm
Circular 8/18 R	Mineral Fiber	400	0.65
Circular 12/25 R	Nil	400	0.60	333.3 mm
Circular 12/25 R	Mineral Fiber	400	0.65
Square 12/25 Q	Nil	400	0.65	333.3 mm
Square 12/25 Q	Mineral Fiber	400	0.75
Alternating Circular 12/20/66 R	Nil	400	0.60	330 mm
Alternating Circular 12/20/66 R	Mineral Fiber	400	0.70
Random 8/15/20 R	Nil	400	0.45	333.3 mm
Random 8/15/20 R	Mineral Fiber	400	0.50
