Armstrong SOUNDSCAPES® Baffles
- High acoustic performance with modern linear appearance
- Available in various dimensions and colours, including wood effect
- simple installation – individually or in groups from peakform™ 24mm grid
- Fire performance : B-s1,d0 as per EN 13501-1
Applications

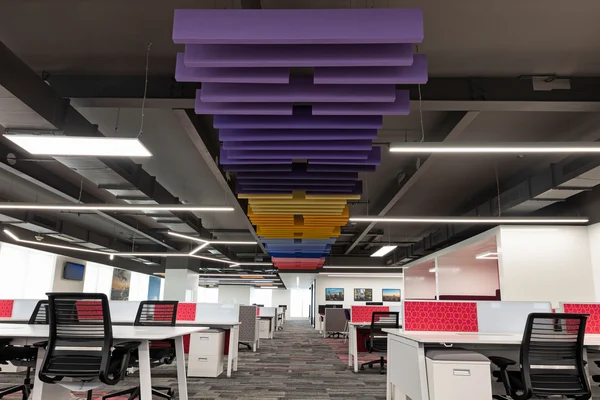

Armstrong SOUNDSCAPES® BafflesAcoustic soft mineral baffle with a modern linear appearance and good acoustics
Description & Details
Armstrong SOUNDSCAPES® Baffles is a frameless and jointless soft mineral acoustic canopy in 40 mm, available in two standard dimensions. With its smooth laminated surface, it offers good sound absorption and reduces reverberation time in a space. Choose from either White or any RAL colours to create exciting interiors without compromising with acoustic performance. Accredited Very Good under Singapore Green Building Product (SGBP), these floating elements can be used as individual baffles or as a grouped installation to create a staggering linear effect. This makes Armstrong SOUNDSCAPES® Baffles an ideal choice for office, education, leisure and transport settings with exposed soffit ceilings.
- High acoustic performance with modern linear appearance
- Available in various dimensions and colours, including wood effect
- simple installation – individually or in groups from peakform™ 24mm grid
- Fire performance : B-s1,d0 as per EN 13501-1
- Industrial building
- Office building
- Leisure & Hospitality
- Retail
- Education
Product Variants & Packaging
Armstrong SOUNDSCAPES® Baffles
| Material number | Length | Width | Thickness | Colour | Recycled content | Sound absorption (Sabines) | Sound absorption (NRC) |
|---|---|---|---|---|---|---|---|
00691854 | 1,200 mm | 400 mm | 40 mm | traffic white | 80 % | 1 | 0.65 |
00691855 | 1,800 mm | 400 mm | 40 mm | traffic white | 1,45 | 0.65 | |
00733109 | 1,800 mm | 400 mm | 40 mm | traffic white | 1,45 | 0.65 | |
00691567 | 1,200 mm | 200 mm | 40 mm | pastel blue | |||
00691568 | 1,200 mm | 200 mm | 40 mm | pale green | |||
00691565 | 1,200 mm | 200 mm | 40 mm | traffic white | |||
00691575 | 1,200 mm | 400 mm | 40 mm | traffic grey | |||
00691571 | 1,200 mm | 400 mm | 40 mm | traffic white | |||
00691591 | 1,600 mm | 400 mm | 40 mm | pastel blue | |||
00691605 | 1,800 mm | 400 mm | 40 mm | traffic grey |
