Certificates and Standards
DriTherm® Cavity Slab 37
- Made with a water-repellent additive to resist moisture ingress.
- Hold an Agrément certificate by the BBA for use in all exposure zones, including those in very severe areas.
- Engineered to adapt to any slight imperfections in the substrate and knit together, eliminating any air gaps and preserving thermal performance for the lifetime of the building.
- Friction fit between wall ties, so there is no need for ancillary products, such as retaining discs or jointing tape.
Applications

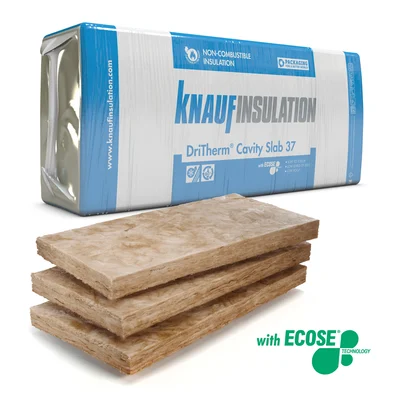

DriTherm® Cavity Slab 37Glass Mineral Wool
Description & Details
DriTherm® Cavity Slab 37 is a water-repellent glass mineral wool slab, designed for use in external full-fill masonry cavity walls. It offers thermal conductivity of 0.037 W/mK. DriTherm® Cavity Slab 37 is non-combustible with the best possible Euroclass A1 reaction to fire classification, and is manufactured using our unique bio-based binder, ECOSE® Technology.
- Made with a water-repellent additive to resist moisture ingress.
- Hold an Agrément certificate by the BBA for use in all exposure zones, including those in very severe areas.
- Engineered to adapt to any slight imperfections in the substrate and knit together, eliminating any air gaps and preserving thermal performance for the lifetime of the building.
- Friction fit between wall ties, so there is no need for ancillary products, such as retaining discs or jointing tape.
- Full-fill solution that doesn't require cavity barriers.
Masonry cavity walls
Documents
EN
Declaration of Performance
- Declaration of performance: G4207JPCPR
- Declarations of performance (DoPs), safety data sheets (SDS), and environmental product declarations (EPD) for our offered products can be found via a central Knauf Insulation database.
Certificates
Technical Data
| Description | Value | Unit | Norm |
|---|---|---|---|
Thermal conductivity declared | 0,037 | W/(mK) | |
Reaction to fire | A1 | EN 13501-1 |
Product Variants & Packaging
DriTherm® Cavity Slab 37
| Material number | EAN / GTIN | Thickness | Width | Length | Pieces per pack | m2 per pack | m² per pallet | Packs per pallet |
|---|---|---|---|---|---|---|---|---|
316650 | 5012061890488 | 50 mm | 455 mm | 1 200 mm | 12 pc/pac | 6,55 m²/pac | 196,56 m²/pal | 30 pac/pal |
316652 | 5012061890501 | 65 mm | 455 mm | 1 200 mm | 10 pc/pac | 5,46 m²/pac | 218,40 m²/pal | 40 pac/pal |
316654 | 5012061890525 | 75 mm | 455 mm | 1 200 mm | 8 pc/pac | 4,37 m²/pac | 218,40 m²/pal | 50 pac/pal |
316656 | 5012061890549 | 85 mm | 455 mm | 1 200 mm | 8 pc/pac | 4,37 m²/pac | 196,56 m²/pal | 45 pac/pal |
316660 | 5012061890587 | 125 mm | 455 mm | 1 200 mm | 6 pc/pac | 3,28 m²/pac | 131,04 m²/pal | 40 pac/pal |
715831 | 5056376642226 | 100 mm | 455 mm | 1 200 mm | 12 pc/pac | 6,55 m²/pac | 163,80 m²/pal | 25 pac/pal |
715835 | 5056376642264 | 150 mm | 455 mm | 1 200 mm | 8 pc/pac | 4,37 m²/pac | 109,20 m²/pal | 25 pac/pal |
