GIFAfloor DB Green
OUR MOST RECYCLING-FRIENDLY SOLUTION FOR FLEXIBLE FLOOR STRUCTURES.
Our GIFAfloor DBgreen raised floor system is an ecologically and economically sensible development.
The GIFAfloor raised floor blanks are manufactured in our factory with a special edge geometry in such a way that they do not require the usual plastic edge tape.
The result is a flat surface for the installation of self-laying carpet tiles of all kinds. Due to the elimination of plastic edges, this raised floor variant of GIFAfloor DBgreen is even less problematic to recycle than conventional raised floor elements.
Many of our customers from different countries have recognized the advantages of the system and use GIFAfloor DBgreen whenever they have decided to use self-lying carpet tiles as a covering.
GIFAfloor DB Green Features
Specifications | Applications |
|---|---|
Panel size: 600 x 600 mm, thickness: 30, 36 and 40 mm | Easy access to underfloor installation |
Edge profile: beveled, without PVC edge trim | Full flexibility for workspaces to incorporate layout modification |
Construction heights: 80 to 1.000 mm | Best for: Commercial Buildings and Datacenters |
Fire Rating According to DIN EN 13501-2
GIFAfloor DB Green 30 | GIFAfloor DB Green 36 | GIFAfloor DB Green 40 |
|---|---|---|
REI 30 | REI 60 | REI 60 |
Load Capacity
GIFAfLoor DB Green 30 | GIFAfloor DB Green 36 | GIFAfloor DB Green 40 | |
|---|---|---|---|
Point Load (Full system) | 2 kN | 3 kN | 4 kN |
Uniformly Distributed Load (Full System) | 9 kN/m2 | 13 kN/m2 | 18 kN/m2 |
Acoustic Performance
- Flanking normalized level difference Dn,f,w,P [dB] 46
- Weighted naormalized impact sound level Ln,f,w,P [dB] 79
- Weighted impact sound improvement index ΔLw,P [dB] 16
(Test conducted on GIFAfloor FHB 32 1200x600mm, without floor covering)
GIFAFloor DB Green Assembly Guide
Discover Our Products

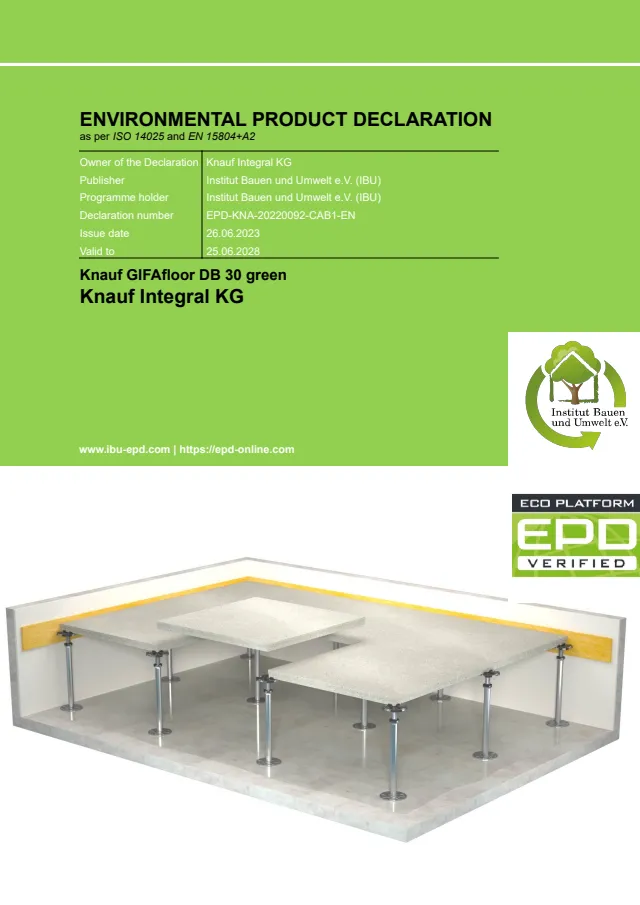

Download our Certificates
