GIFAfloor FHB
Know more about GIFAfloor FHB
Get more information about our GIFAfloor Hollow Floor Systems
GIFAfloor FHB
A homogeneous surface that has it all.

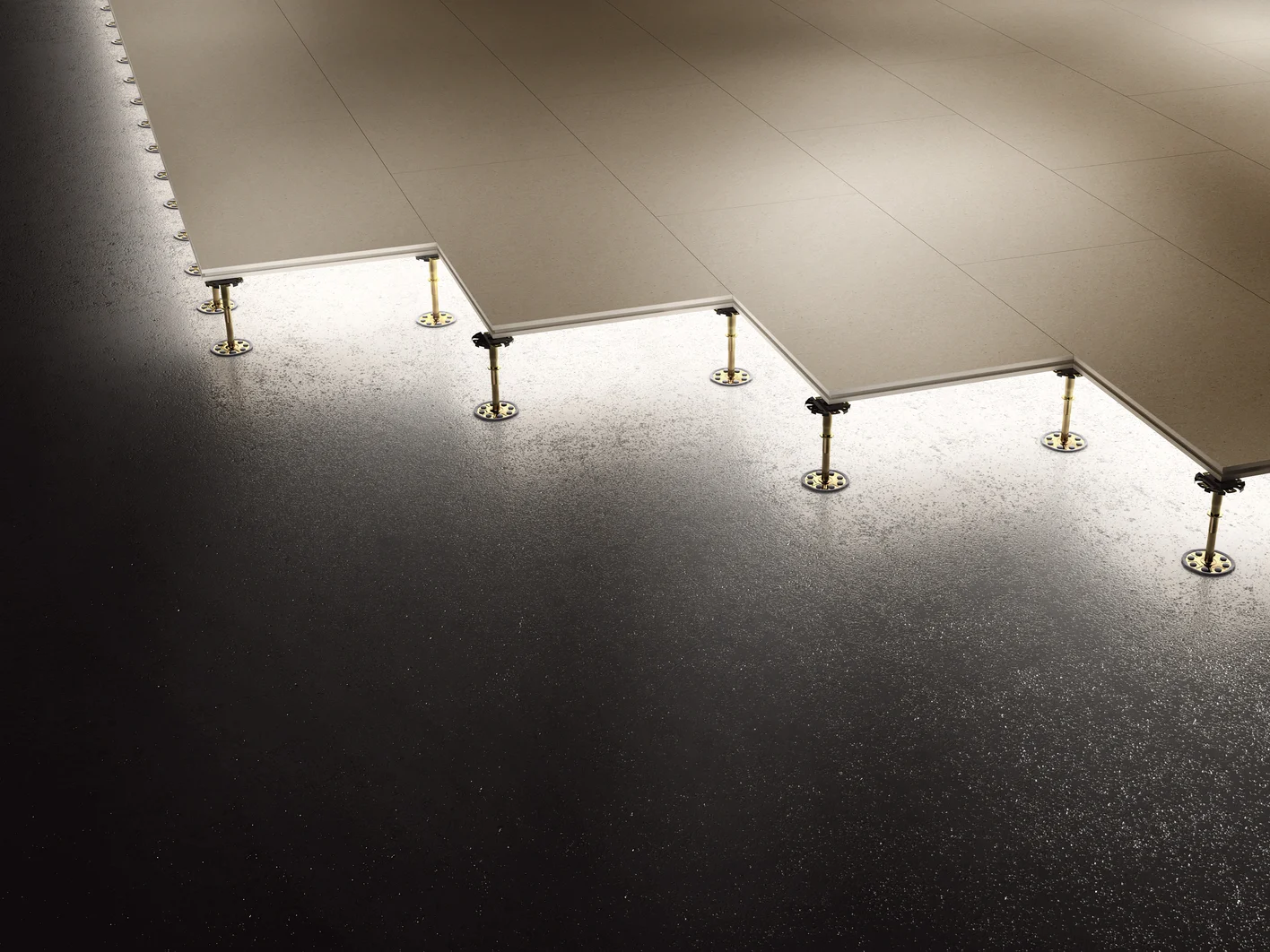

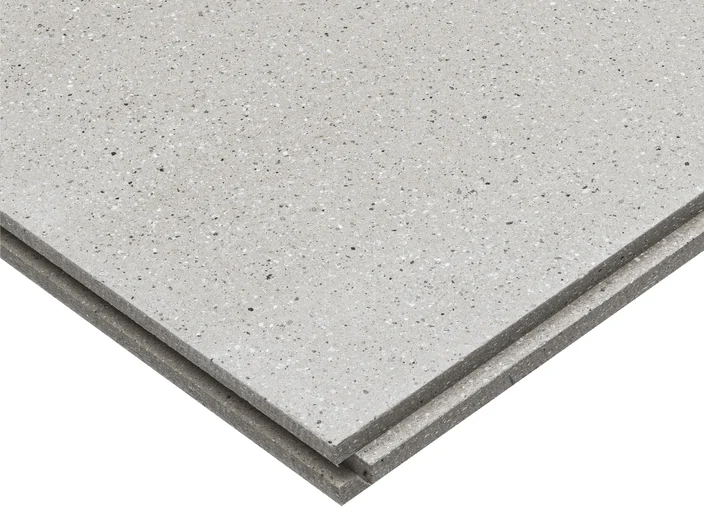

GIFAfloor FHB is our tried-and-tested hollow surface floor, the perfect solution for large rooms that are subject to heavy use. By gluing the 1200 x 600 mm or 600 x 600 mm elements into tongue and groove, an absolutely flat floor surface is created.
The advantages of this flooring system are the high load-bearing capacity, the freedom to install in the cavity and the absorption of additional loads such as drywall. Compared to raised floors, a GIFAfloor FHB can be planned in a significantly lower installation height due to its high load distribution.
This creates an ideal substrate for any type of floor covering - whether parquet, noble stone flooring or noise-absorbing carpeting. Surfaces up to approx. 15 x 15 m can be designed seamlessly. Due to its quick installation, high flexibility and extraordinary load-bearing capacity, GIFAfloor FHB is often the first choice for architects.
GIFAfloor FHB Features
Specifications | Applications |
|---|---|
Panel size: 1200 x 600 mm, thickness: 25, 28, 32 and 38 mm | This system offers partial access to voids beneath |
Edge profile: tongue & groove | Produce a strong and versatile raised floor system with high dimensional stability |
Construction heights: 60 to 1200 mm | Ideal substrate for any type of finishes (Museums, Studios) |
Fire Rating According to DIN EN 13501-2
REI 30 | REI 60 | REI 90 | REI 120 |
|---|---|---|---|
GIFAfloor FHB 25 | GIFAfloor FHB 32 | GIFAfloor FHB 32 + 18 | GIFAfloor FHB 38 |
GIFAfloor FHB 28 |
Load Capacity
GIFAfloor FHB 25 | GIFAfloor FHB 28 | GIFAfloor FHB 32 | GIFAfloor FHB 38 | |
|---|---|---|---|---|
Point Load (Full system) | 3 kN/m2 | 4 kN/m2 | 5 kN/m2 | 6 kN/m2 |
Uniformly Distributed Load (Full System) | 6 kN/m2 | 8 kN/m2 | 12 kN/m2 | 16 kN/m2 |
Acoustic Performance
- Flanking normalized level difference Dn,f,w,P [dB] 46
- Weighted naormalized impact sound level Ln,f,w,P [dB] 79
- Weighted impact sound improvement index ΔLw,P [dB] 16
(Test conducted on GIFAfloor FHB 32 1200x600mm, without floor covering)
Discover our products

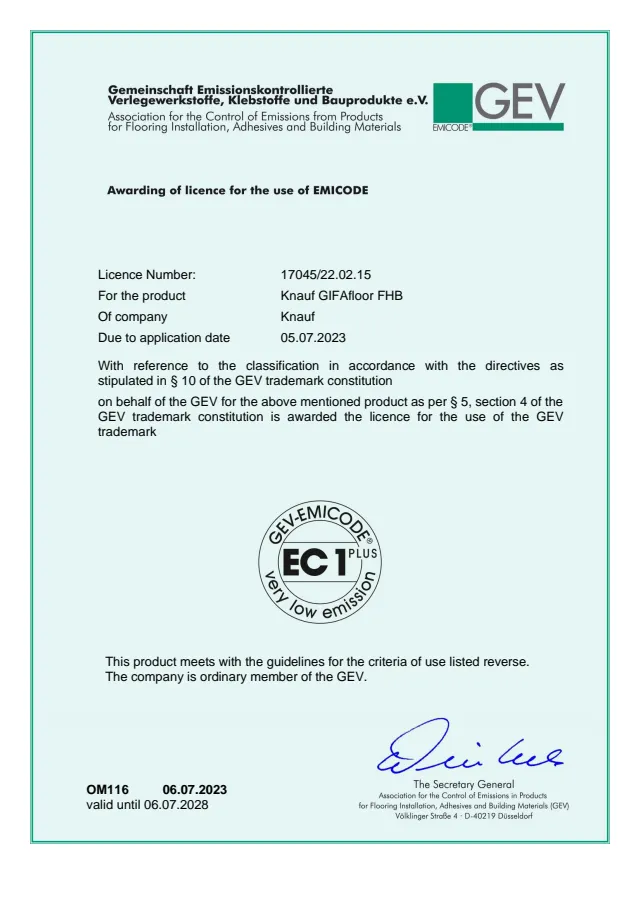

Download our Certificates
