Lighter shafts. Faster floors. Certified fire protection.
Knauf Shaftwall lines lifts, stairwells and service risers entirely from the accessible side — up to 90% lighter than traditional shaftwalls, installed floor-by-floor with no scaffolding, and certified for the fire performance high-rise buildings demand.

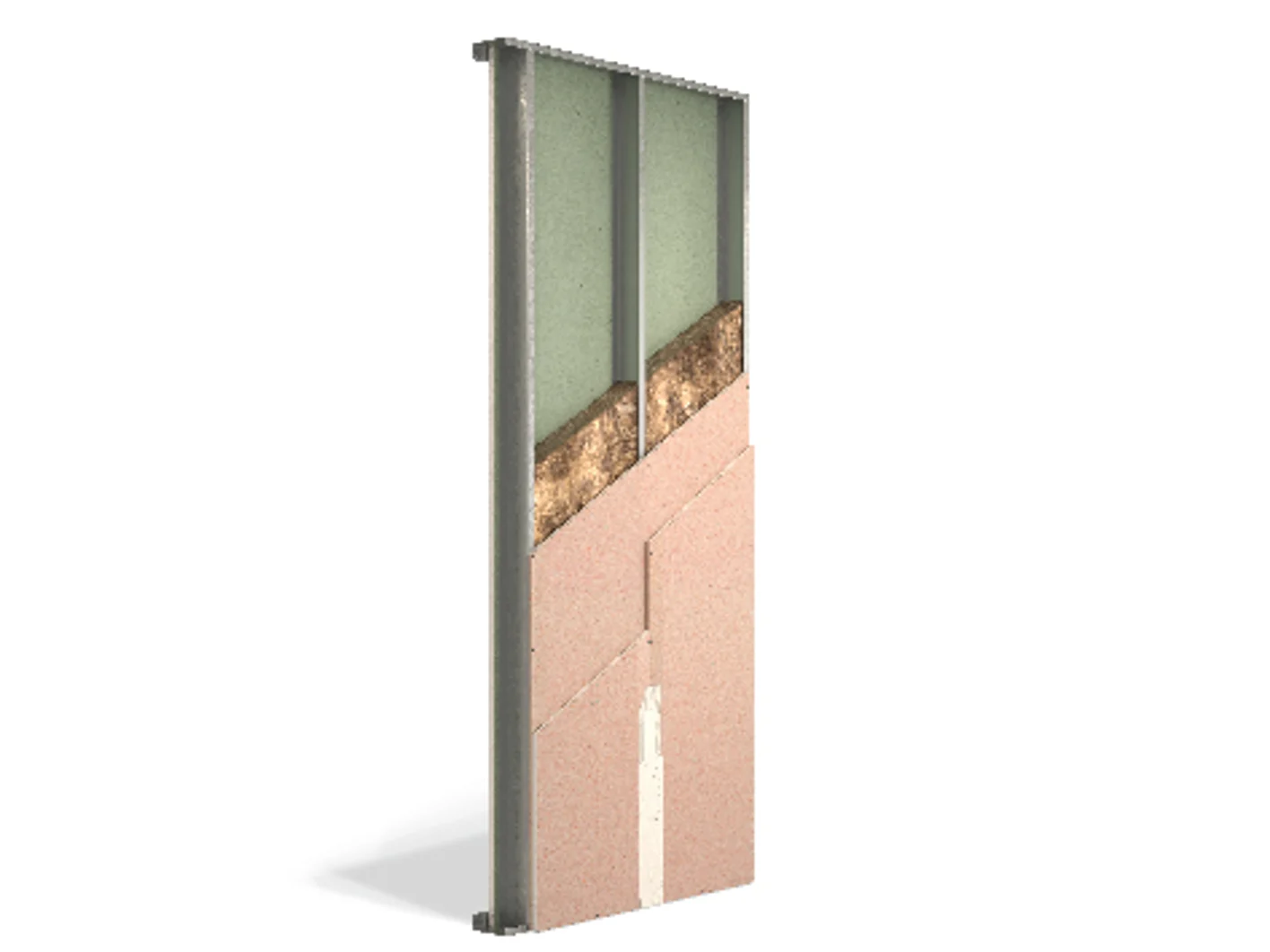

Unlike a conventional partition, the system is built entirely from the accessible (corridor/room) side — the shaft-facing board is installed first into a proprietary framing system, and the framework is then built outward toward the installer.
Product Variants and Performances
ASTM Boards
CT 64mm (0.9mm) Stud at 609mm c/c - L/240 @240Pa
Product | Height | Fire Resistance Performance (in mins) | Sound Insulation (db) | Duty Rating | System Thickness (mm) | System Weight (kg/m2) |
|---|---|---|---|---|---|---|
2 x 15.9mm GW-TX (Fire Resistant) | 4550 | 120 | 49 | Severe | 95.8 | 51.70 |
CT 102mm (0.9mm) Stud at 609mm c/c - L/240 @240Pa
Product | Height | Fire Resistance Performance (in mins) | Sound Insulation (db) | Duty Rating | System Thickness (mm) | System Weight (kg/m2) |
|---|---|---|---|---|---|---|
2 x 15.9mm GW-TX (Fire Resistant) | 5900 | 120 | 51 | Severe | 133.8 | 52.8 |
CT 152mm (0.9mm) Stud at 609mm c/c - L/240 @240Pa
Product | Height | Fire Resistance Performance (in mins) | Sound Insulation (db) | Duty Rating | System Thickness (mm) | System Weight (kg/m2) |
|---|---|---|---|---|---|---|
2 x 15.9mm GW-TX (Fire Resistant) | 7840 | 120 | 53 | Severe | 183.8 | 54.24 |
BS EN Boards
CT 64mm (0.9mm) Stud at 600mm c/c - L/240 @200Pa
Product | Height | Fire Resistance Performance (in mins) | Sound Insulation (db) | Duty Rating | System Thickness (mm) | System Weight (kg/m2) |
|---|---|---|---|---|---|---|
2 x 15mm Knauf Fire Resistant Board | 4550 | 120 | 49 | Severe | 95.8 | 51.90 |
CT 102mm (0.9mm) Stud at 600mm c/c - L/240 @200Pa
Product | Height | Fire Resistance Performance (in mins) | Sound Insulation (db) | Duty Rating | System Thickness (mm) | System Weight (kg/m2) |
|---|---|---|---|---|---|---|
2 x 15mm Knauf Fire Resistant Board | 5900 | 120 | 51 | Severe | 133.8 | 53 |
CT 152mm (0.9mm) Stud at 600mm c/c - L/240 @200Pa
Product | Height | Fire Resistance Performance (in mins) | Sound Insulation (db) | Duty Rating | System Thickness (mm) | System Weight (kg/m2) |
|---|---|---|---|---|---|---|
2 x 15mm Knauf Fire Resistant Board | 7840 | 120 | 53 | Severe | 183.8 | 54.44 |
