Armstrong METALWORKS™ Baffles
- Durable extruded aluminium beam profiles
- flexible design enables “perimeter to core” or fully “discontinuous” solutions
- available in two widths with flexible modules and four standard colours including two “timberlook” finishes
- heavy duty u-profile suspension channel primary rail for integration of services
Description & Details

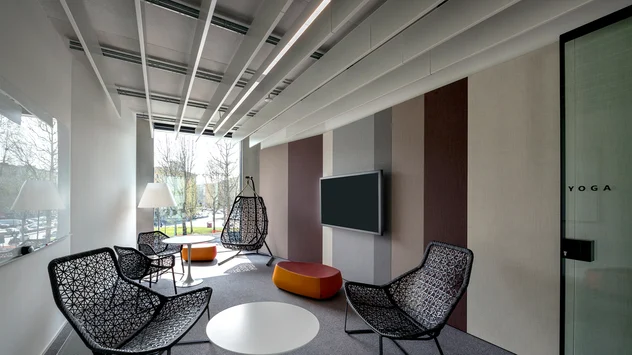

Armstrong METALWORKS™ Baffles is a durable extruded aluminium beam profile available in a variety of dimensions and configurations. With a multitude of design options using standard or custom profiles, an extensive range of colour options including Wood Effects, and various modules and configurations, it offers an attractive baffles ceiling system that screens the open plenum. It is easy to install and maintain, making them a versatile choice for a wide range of applications, from open plan spaces, lobbies, transportation terminals, restaurants, and commercial spaces to educational facilities. Their robust construction and aesthetic appeal ensure they enhance any environment they are part of. Armstrong METALWORKS™ Baffles is a responsible choice for environmentally conscious projects. Their eco-friendly design contributes to green building certifications, making them not only a visually appealing but also a sustainable solution for modern architecture.
- Durable extruded aluminium beam profiles
- flexible design enables “perimeter to core” or fully “discontinuous” solutions
- available in two widths with flexible modules and four standard colours including two “timberlook” finishes
- heavy duty u-profile suspension channel primary rail for integration of services
- Hospital
- Industrial building
- Office building
- Leisure & Hospitality
- Retail
- Education
Product Variants & Packaging
Armstrong METALWORKS™ Baffles
| Material number | Length | Width | Thickness | Colour |
|---|---|---|---|---|
00691835 | 3,600 mm | 100 mm | 25 mm | white |
00691834 | 3,600 mm | 100 mm | 25 mm | black |
00691828 | 3,600 mm | 100 mm | 25 mm | cherry |
00691827 | 3,600 mm | 100 mm | 25 mm | red oak |
00691833 | 3,600 mm | 150 mm | 25 mm | white |
00733418 | 3,600 mm | 150 mm | 25 mm | cherry |
00691830 | 3,600 mm | 150 mm | 25 mm | red oak |
00691832 | 3,600 mm | 100 mm | 50 mm | black |
00691829 | 3,600 mm | 100 mm | 50 mm | cherry |
00691825 | 3,600 mm | 100 mm | 50 mm | white |
00691831 | 3,600 mm | 100 mm | 50 mm | red oak |
00691826 | 3,600 mm | 150 mm | 50 mm | white |
00727461 | 3,600 mm | 150 mm | 50 mm | black |
00759631 | 3,600 mm | 150 mm | 50 mm | cherry |
