ST50 Intermediate Section
- Metal systems conforming to cpwd schedule
- Better rigidity
- Better screw penetration
- Quick & simple to construct
Applications
ST50 Intermediate SectionPrimary section to support the ceiling section
Description & Details
USGKnauf ST50 Intermediate Channel is an integral part of USGKnauf suspended Ceiling System. ST50 Intermediate Channel is the main member and is hung from the Soffit through Ceiling Angle, Soffit Cleat & Fasteners. It is positioned in perpendicular direction to the ceiling section and each intersection has Connecting Clips which keep both the sections in place. These are rolled and formed on specially designed automatic machines.
- Metal systems conforming to cpwd schedule
- Better rigidity
- Better screw penetration
- Quick & simple to construct
- Knurling enhances grip between sections
- Galvanizing 120 gsm as per is277
- High-quality cold rolled steel
Documents
Product Variants & Packaging

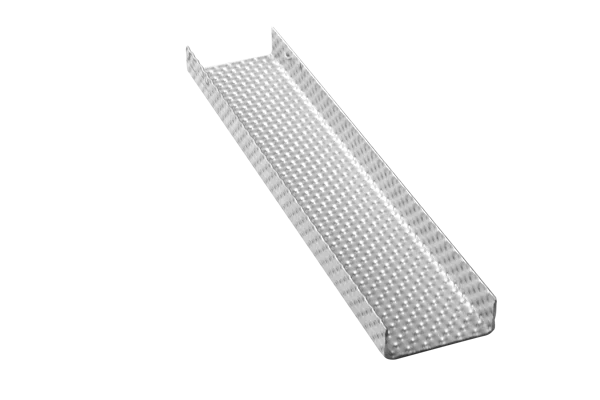

ST50 Intermediate Section
| Material number | Base unit of measure | Length | Width | Height | Weight |
|---|---|---|---|---|---|
00779390 | PC | 3,660 mm | 45 mm | 15 mm | 1.87 kg |
