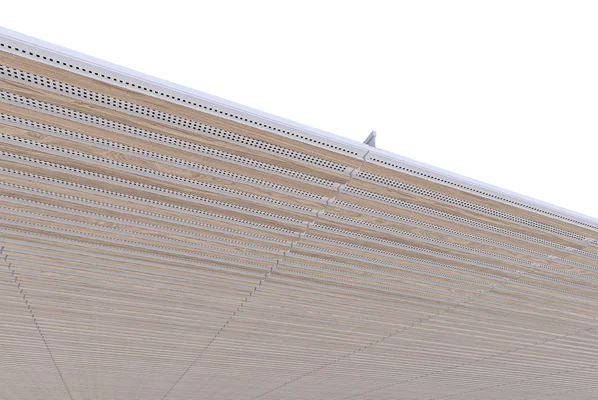

ROLD12 12.5mm is a linear acoustic gypsum ceiling tile with a refined wood look finish. ROLD12 is designed to combine excellent acoustic performance with its distinctive three-dimensional surface design. The surface combines a perforated gypsum panel with applied linear strips in a wood look finish, creating a warm and architectural ceiling or wall design with depth and rhythm. The panels are installed in a concealed 24mm T-grid system on a suitable substructure and, with their Unity 3 perforation pattern (3.5 × 3.5 mm square perforations), deliver excellent sound absorption while maintaining a calm and structured visual expression. The material is non-combustible and achieves top fire classification (A2-s1, d0), ensuring safe use in demanding environments. The demountable system allows for easy installation and provides full access to individual panels for maintenance. The system can also be combined with integrated lighting solutions and is suitable for use with diffuse ventilation concepts. This makes ROLD12 12.5mm an ideal solution for offices, restaurants, hotels, meeting rooms and public spaces where both acoustic comfort and strong architectural design are required. The product is made from gypsum, is recyclable, and can be reused in the production of new gypsum boards and acoustic gypsum tiles. It meets strict indoor air quality standards and supports sustainable construction.
| Product Data Sheet | ||
|---|---|---|
LED light strip FOR ROLD12 - Datasheet.PDF /
- /
4.32 MB /
2 pages | ||
| Manual | ||
|---|---|---|
ROLD12 - Installation guide.PDF /
- /
3.03 MB /
9 pages | ||
LED light strips for Rold12 - Installation guide.PDF /
- /
690.00 KB /
2 pages | ||
| Declaration of Performance | ||
|---|---|---|
DOP ROLD12.PDF /
- /
170.00 KB /
3 pages | ||
| Safety Data Sheet | ||
|---|---|---|
ROLD12 - Safety datasheet.PDF /
- /
240.00 KB /
9 pages | ||
| Technical Information | ||
|---|---|---|
ROLD12 - Perforations.PDF /
- /
220.00 KB /
1 page | ||
| Description | Value | Norm |
|---|---|---|
Reaction to fire | A2-s1, d0 | EN 13501-1 |
ROLD12 12.5mm
| Material number | EAN / GTIN | Width | Length | Thickness | Weight | Perforation | Colour | Pieces per pallet | Pieces per pack |
|---|---|---|---|---|---|---|---|---|---|
00719224 | 5709636408970 | 600 mm | 600 mm | 600 mm | 4.17 kg | Unity 3 | white | 68 pc/pal | 2 pc/pac |
