Certificates and Standards

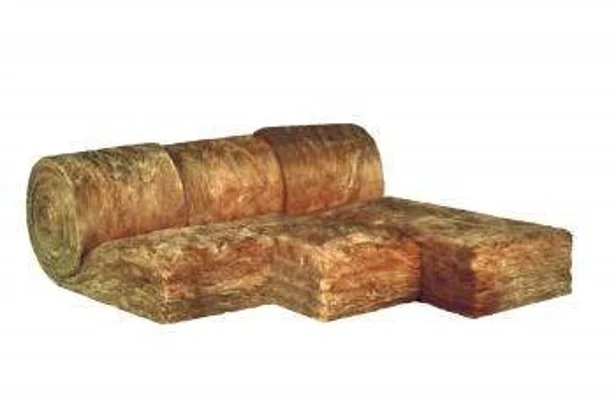

Naturoll 035
- ECOSE® Technology plant-based binder
- Non-combustible: Eurcoclasse A1
- Specific widths
- Rigidity and mechanical strength of peeled panels
Applications
Naturoll 035Applications and solutions: thermal and acoustic insulation for walls, roofs, and partitions
Description & Details
Semi-rigid, high thermal performance rolled panel (specific widths)
- ECOSE® Technology plant-based binder
- Non-combustible: Eurcoclasse A1
- Specific widths
- Rigidity and mechanical strength of peeled panels
- A product entirely dedicated to timber-frame housing
Documents
Technical Data
| Description | Value | Unit |
|---|---|---|
Thermal conductivity | 0.035 | W/(m∙K) |
Reaction to fire | A1 | |
Dimensional tolerances thickness | T2 | |
Longitudinal air flow resistance class | Afr5 | |
Short term water absorption by partial immersion | WS | |
Long term water absorption by partial immersion | WL(P) | |
Water vapour diffusion resistance class | MU1 |
Product Variants & Packaging
Naturoll 035
| Material number | EAN / GTIN | Thickness | Width | Length | m² per roll | Pieces per pack | m2 per pack | m² per pallet | Packs per pallet |
|---|---|---|---|---|---|---|---|---|---|
456967 | 5413031004995 | 170 mm | 580 mm | 4,350 mm | 2.52 m²/roll | 2 pc/pac | 5.05 m²/pac | 121.10 m²/pal | 24 pac/pal |
456975 | 5413031005015 | 185 mm | 580 mm | 4,000 mm | 2.32 m²/roll | 2 pc/pac | 4.64 m²/pac | 111.36 m²/pal | 24 pac/pal |
456992 | 5413031005053 | 220 mm | 580 mm | 3,400 mm | 1.97 m²/roll | 2 pc/pac | 3.94 m²/pac | 94.66 m²/pal | 24 pac/pal |
491686 | 5413031007064 | 90 mm | 380 mm | 7,600 mm | 2.89 m²/roll | 3 pc/pac | 8.66 m²/pac | 207.94 m²/pal | 24 pac/pal |
456800 | 5413031004933 | 90 mm | 580 mm | 7,600 mm | 4.41 m²/roll | 2 pc/pac | 8.82 m²/pac | 211.60 m²/pal | 24 pac/pal |
491692 | 5413031007088 | 120 mm | 380 mm | 6,200 mm | 2.36 m²/roll | 3 pc/pac | 7.07 m²/pac | 169.63 m²/pal | 24 pac/pal |
491695 | 5413031007330 | 140 mm | 380 mm | 5,300 mm | 2.01 m²/roll | 3 pc/pac | 6.04 m²/pac | 145.01 m²/pal | 24 pac/pal |
456824 | 5413031004971 | 140 mm | 580 mm | 5,300 mm | 3.07 m²/roll | 2 pc/pac | 6.15 m²/pac | 147.55 m²/pal | 24 pac/pal |
491698 | 5413031007125 | 170 mm | 380 mm | 4,350 mm | 1.65 m²/roll | 3 pc/pac | 4.96 m²/pac | 119.01 m²/pal | 24 pac/pal |
491706 | 5413031007149 | 185 mm | 380 mm | 4,000 mm | 1.52 m²/roll | 3 pc/pac | 4.56 m²/pac | 109.44 m²/pal | 24 pac/pal |
491748 | 5413031007163 | 220 mm | 380 mm | 3,400 mm | 1.29 m²/roll | 3 pc/pac | 3.88 m²/pac | 93.02 m²/pal | 24 pac/pal |
