Certificates and Standards
SMARTFACADE 35 BP
- ECOSE® Technology plant-based binder
- Black glass mat for open joint cladding
- Very high thermal and acoustic performance
- Improved summer comfort
Applications

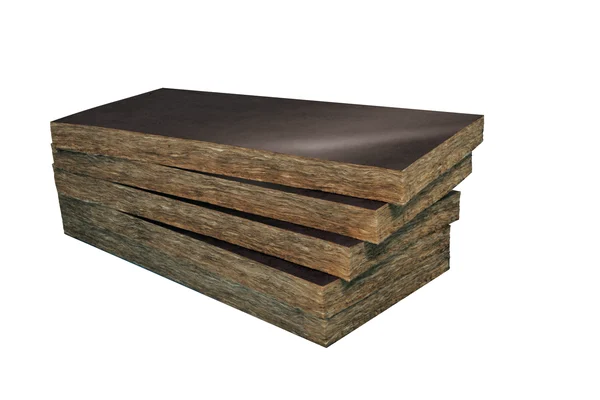

SMARTFACADE 35 BPSemi-rigid mineral wool panel coated with black glass fiber.
Description & Details
Semi-rigid mineral wool panel coated with black glass fiber.
- ECOSE® Technology plant-based binder
- Black glass mat for open joint cladding
- Very high thermal and acoustic performance
- Improved summer comfort
- Handling
- Non-hydrophilic
- Non-combustible: Euroclass A1
Documents
Technical Data
| Description | Value | Unit |
|---|---|---|
Thermal conductivity | 0.035 | W/(m∙K) |
Reaction to fire | A1 | |
Dimensional tolerances thickness | T4 | |
Longitudinal air flow resistance class | Afr5 | |
Short term water absorption by partial immersion | WS | |
Long term water absorption by partial immersion | WL(P) | |
Water vapour diffusion resistance class | MU1 |
Product Variants & Packaging
SMARTFACADE 35 BP
| Material number | EAN / GTIN | Thickness | Width | Length | Pieces per pack | m2 per pack | m² per pallet | Packs per pallet |
|---|---|---|---|---|---|---|---|---|
656361 | 5413031019555 | 100 mm | 600 mm | 1,350 mm | 8 pc/pac | 6.48 m²/pac | 155.52 m²/pal | 24 pac/pal |
656364 | 5413031019579 | 120 mm | 600 mm | 1,350 mm | 6 pc/pac | 4.86 m²/pac | 97.20 m²/pal | 20 pac/pal |
656657 | 5413031019593 | 140 mm | 600 mm | 1,350 mm | 5 pc/pac | 4.05 m²/pac | 97.20 m²/pal | 24 pac/pal |
