Certificates and Standards
Ultracoustic P
- ECOSE® Technology plant-based binder
- Very high acoustic performance
- Easy to install
- Excellent fire resistance
Applications

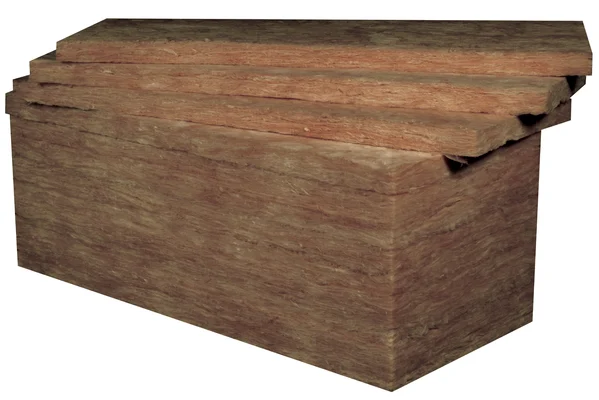

Ultracoustic PSemi-rigid bare glass wool panel with very high acoustic performance.
Description & Details
Semi-rigid bare glass wool panel with very high acoustic performance. Insulation for technical partitions (high ceilings, hospitals, removable partitions, etc.).
- ECOSE® Technology plant-based binder
- Very high acoustic performance
- Easy to install
- Excellent fire resistance
- Excellent mechanical strength
- Free-standing
- Non-combustible: Euroclass A1
Documents
Technical Data
| Description | Value | Unit |
|---|---|---|
Thermal conductivity | 0.037 | (m²K)/W |
Reaction to fire | A1 | |
Dimensional tolerances thickness | T4 | |
Longitudinal air flow resistance class | Afr5 |
Product Variants & Packaging
Ultracoustic P
| Material number | EAN / GTIN | Thickness | Width | Length | Pieces per pack | m2 per pack | m² per pallet | Packs per pallet |
|---|---|---|---|---|---|---|---|---|
520273 | 5413031009563 | 45 mm | 600 mm | 1,200 mm | 16 pc/pac | 11.52 m²/pac | 276.48 m²/pal | 24 pac/pal |
520178 | 5413031009532 | 45 mm | 600 mm | 1,350 mm | 16 pc/pac | 12.96 m²/pac | 311.04 m²/pal | 24 pac/pal |
2400756 | 5413031380662 | 60 mm | 600 mm | 1,350 mm | 12 pc/pac | 9.72 m²/pac | 194.40 m²/pal | 20 pac/pal |
268515 | 5413031380075 | 75 mm | 600 mm | 1,350 mm | 10 pc/pac | 8.10 m²/pac | 162.00 m²/pal | 20 pac/pal |
