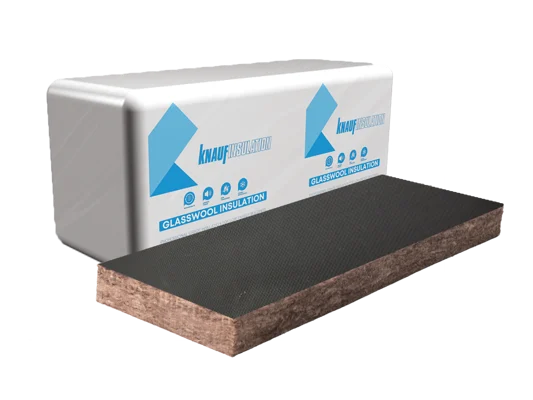

Knauf - Knauf Insulation Soffit Batt - Soffit Batt with Packaging
Knauf - Knauf Insulation Soffit Batt - Smart Facade Soffit product image
Knauf - Knauf Insulation Soffit Batt - Soffit Batt with Packaging
Certificates and Standards
Indoor Air Comfort® GoldEUCEB

Knauf Insulation Soffit Batt

For the thermal and acoustic insulation of soffits
  • Sound absorbing
  • High thermal performance — year round comfort
  • No added formaldehyde or phenol
  • Dritherm® technology, silicone treated, excellence water resistance
Applications
Exterior wall / Facade
Knauf - Soffit Batt with Packaging
Knauf Insulation Soffit BattFor the thermal and acoustic insulation of soffits

Description & Details

Knauf Insulation Soffit Batt is used for the thermal and acoustic insulation of soffits in a wide range of both residential and non-residential buildings. Knauf Insulation Soffit batt is non-combustible with the best possible Euroclass A1 reaction to fire classification. Knauf Insulation Soffit batt is laminated with super strong black woven glass fabric is suitable for use as an insulated underlining solution in structural soffits such as underground car parks, use as an insulated underlining solution in semi-exposed structural soffits.

Knauf Insulation Soffit batt is available in three thickness 50mm, 75mm and 100mm selection of R-values to provide builders, designers and installers the opportunity to choose the best acoustic and thermal performance for their project.

The super-soft and easy to handle benefits of Knauf Insulation Soffit Thermal Barrier been further enhanced with TwinTech® . TwinTech® heralds another advancement insulation manufacture – the dual forming technique ensures there is a smooth finish on both sides of the insulation, which improves product handling and appearance. Knauf Insulation Soffit Thermal Barrier is made using up to 80% recycled glass and with ECOSE® Technology, a sustainable, bio-based binder that contains no added formaldehyde. Enhanced moisture resistance with DriTherm® Technology. Knauf Insulation is silicone treated, which provides moisture resistance for increased durability.

  • Sound absorbing
  • High thermal performance — year round comfort
  • No added formaldehyde or phenol
  • Dritherm® technology, silicone treated, excellence water resistance
  • Non-combustible
  • Odourless
  • Naturally brown — no artificial colours added
  • Superior handling — consistent quality materials, cut easily and installs fast. highly resilient insulation recovers quickly to full thickness
  • Compression packed — more product per pack, more product per delivery, reduce carbon footprint

Documents

Manual
Knauf Insulation Soffit Batt Installation Instuctions.PDF / - / 1.79 MB / 11 pages

Certificates

EUROFINS Cert - ALU PET or Black Woven Facing.PDF / - / 530.00 KB / 2 pages
EUCEB Certificate - Pasir Gudang - Johor 463.PDF / - / 400.00 KB / 2 pages

Product Variants & Packaging

Knauf Insulation Soffit Batt

Material numberThicknessWidthLengthPieces per packagem² per package
880131
50 mm
600 mm
1,200 mm
11 pc/pac
7.92 m²/pac
876563
75 mm
600 mm
1,200 mm
7 pc/pac
5.04 m²/pac
876102
100 mm
600 mm
1,200 mm
6 pc/pac
4.32 m²/pac
