Certificates and Standards
Smartfacade 32 BP
- ECOSE® Technology plant-based binder
- Black glass mat for open joint cladding
- Very high thermal and acoustic performance
- Improved summer comfort
Applications

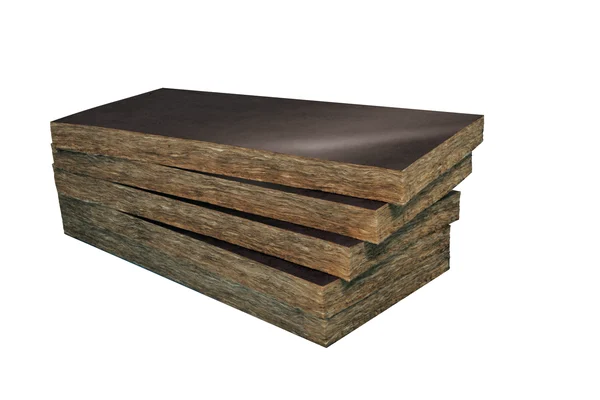

Smartfacade 32 BPSemi-rigid mineral wool panel coated with black glass fiber.
Description & Details
Semi-rigid mineral wool panel coated with black glass fiber.
- ECOSE® Technology plant-based binder
- Black glass mat for open joint cladding
- Very high thermal and acoustic performance
- Improved summer comfort
- Handling
- Non-hydrophilic
- Non-combustible: Euroclass A1
Documents
Technical Data
| Description | Value | Unit |
|---|---|---|
Thermal conductivity | 0.032 | W/(m∙K) |
Reaction to fire | A1 | |
Dimensional tolerances thickness | T4 | |
Longitudinal air flow resistance class | Afr10 | |
Short term water absorption by partial immersion | WS | |
Long term water absorption by partial immersion | WL(P) | |
Water vapour diffusion resistance class | MU1 |
Product Variants & Packaging
Smartfacade 32 BP
| Material number | EAN / GTIN | Thickness | Width | Length | Pieces per pack | m2 per pack | m² per pallet | Packs per pallet |
|---|---|---|---|---|---|---|---|---|
656168 | 5413031019173 | 40 mm | 600 mm | 1,350 mm | 10 pc/pac | 8.10 m²/pac | 194.40 m²/pal | 24 pac/pal |
656221 | 5413031019210 | 120 mm | 600 mm | 1,350 mm | 4 pc/pac | 3.24 m²/pac | 77.76 m²/pal | 24 pac/pal |
656222 | 5413031019234 | 140 mm | 600 mm | 1,350 mm | 3 pc/pac | 2.43 m²/pac | 68.04 m²/pal | 28 pac/pal |
656250 | 5413031019258 | 160 mm | 600 mm | 1,350 mm | 3 pc/pac | 2.43 m²/pac | 58.32 m²/pal | 24 pac/pal |
718278 | 5413031021534 | 180 mm | 600 mm | 1,350 mm | 3 pc/pac | 2.43 m²/pac | 58.32 m²/pal | 24 pac/pal |
