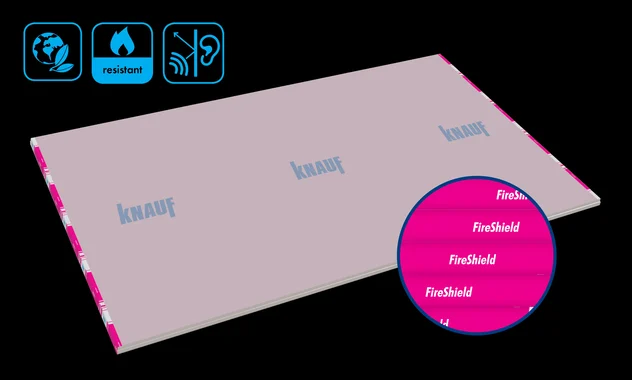

FireShield 16mm
Technical Gypsum Board- Dimensions 4 ft x 8 ft
- Thickness 13 mm and 16 mm
- Edge Profile - Recessed
- Prevent the spread of fire for 30 minutes and up to 4 hours, depending on system applied
Field of Application
FireShield 16mmTechnical Gypsum Board
Description & Details
Knauf FireShield is recommended for partition wall and ceiling systems where specific fire resistance ratings are required. It provides a lightweight option where fire and acoustic performance is required. Knauf FireShield is manufactured and qualifies as Type X gypsum board per ASTM C1396.
Product Properties
- Dimensions 4 ft x 8 ft
- Thickness 13 mm and 16 mm
- Edge Profile - Recessed
- Prevent the spread of fire for 30 minutes and up to 4 hours, depending on system applied
- Specially formulated to resist the dehydration by heat in the event of a fire
- Fire Rated wall and ceiling systems of warehouses, commercial buildings, casinos, convention halls, and hotels.
Documents
Product Variants & Packaging
FireShield 16mm
| Material number | EAN / GTIN | Width | Length | Thickness | Weight |
|---|---|---|---|---|---|
| 00657784 | 4003982403117 | 1,220 mm | 2,440 mm | 16 mm | 44.15 kg |
| 00791143 | 1,220 mm | 2,440 mm | 16 mm | 44.15 kg |
