High-Performance Drywall System
Gypsum board solutions for various applications.
Lightweight gypsum board solutions for various applications, supporting passive cooling, quick turnover and fast build.
Certified drywall framing systems for multiple applications
Knauf drywall framing system solutions deliver the thermal and acoustic performance, moisture resistance, impact resistance and fire safety needed for a wide range of internal applications.
Whether you are specifying for homes with passive cooling, quiet offices or busy hotels, our ASTM-certified systems come with the technical documentation and installation guidance required to support compliant specification.
Use our Systemfinder tool to identify suitable solutions and access the technical documentation you need in one place.
*Performance varies depending on the system and project requirements. Always check the technical documentation before specifying.

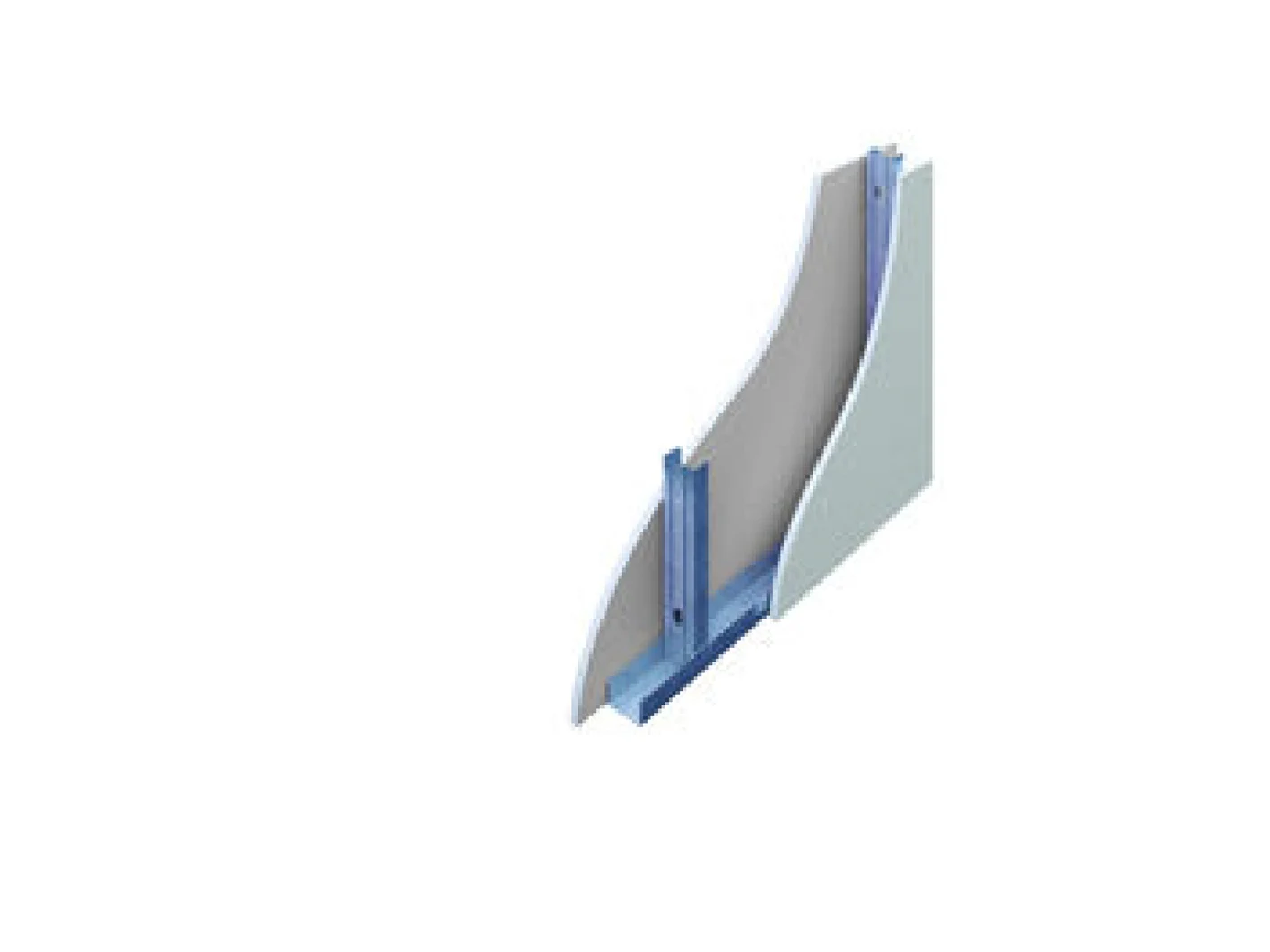

![[PH-GY] Standard Wall Partition System](https://media.knauf.com/a/9gtGsBS6SM6yWMN2sitCJW:CF_4x3_L?dpr=on,2&fmt=webp)
Recommended Materials | Standard Wall Partition System 1 | Standard Wall Partition System 2 |
|---|---|---|
Stud | 64mm x 33.5mm x 0.50mm BMT | 76mm x 33.5mm x 0.50mm BMT |
Wall track | 64mm x 28mm x 0.50mm BMT | 76mm x 28mm x 0.50mm BMT |
Lining | 1 layer of 12mm StandardShield | 1 layer of 12mm StandardShield |
Stud Spacing | 610mm maximum on centers | 610mm maximum on centers |

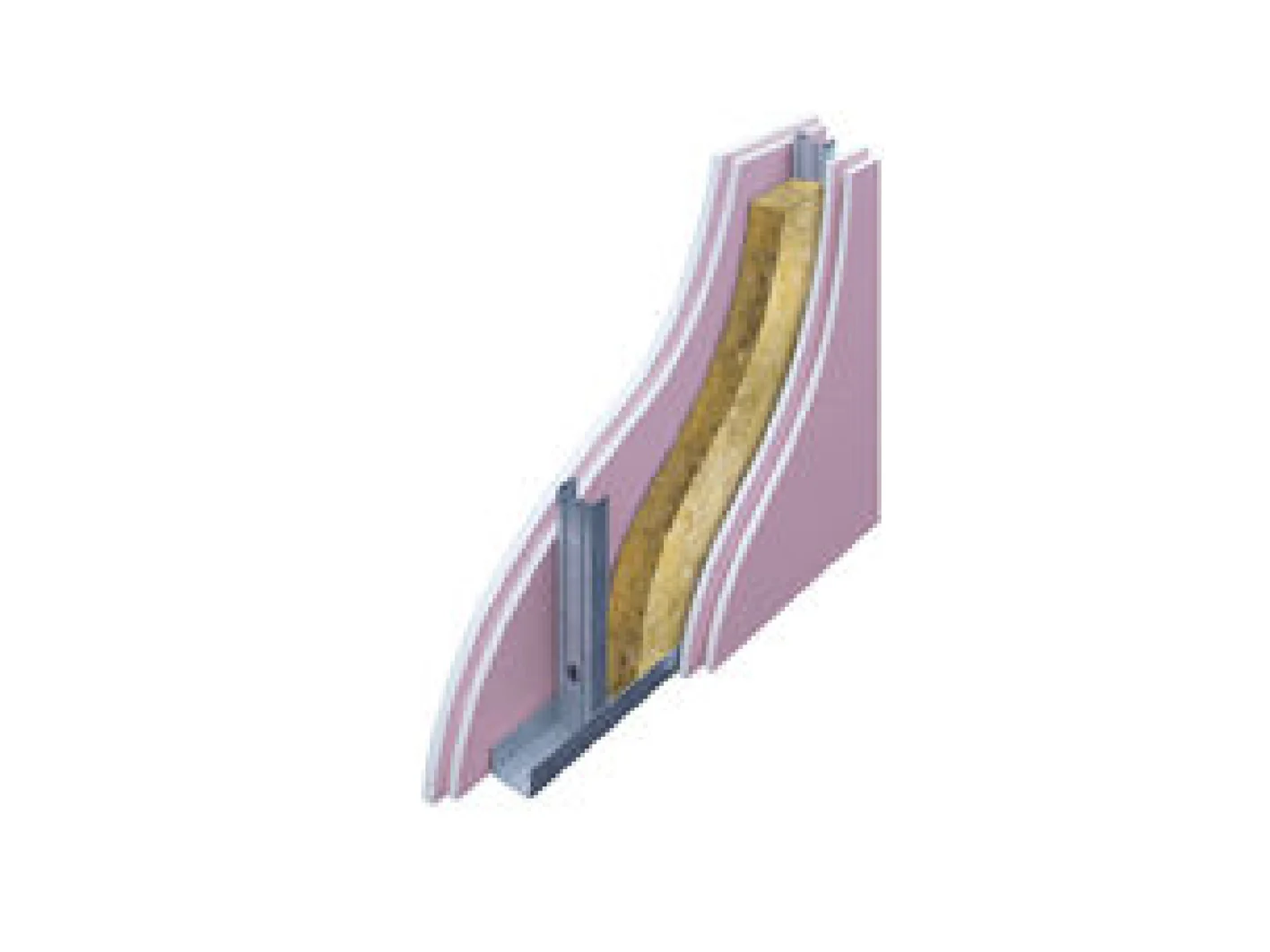

![[PH-GY] Fire and Sound Rated Walls](https://media.knauf.com/a/D6tAcP6goHxPkTC4FrcJvu:CF_4x3_L?dpr=on,2&fmt=webp)
Fire Resistance Level (Recommendations) | 1-HR Fire Resistance Level with Sound Transmission Class 45 | 2-HRS Fire Resistance Level with Sound Transmission Class 45 | 1-HR to 2-HR Fire Resistance Level with Sound Transmission Class 50-55 |
|---|---|---|---|
Stud | 64mm x 33.5mm x 0.50mm BMT | 64mm x 33.5mm x 0.50mm BMT | 92mm x 33.5mm x 0.55mm BMT |
Wall track | 64mm x 32mm x 0.50mm | 64mm x 32mm x 0.50mm | 92mm x 28mm x 0.50mm |
Wool Insulation | 50mm x 60kg/m3 | 50mm x 60kg/m3 | 90mm x 60kg/m3 |
Lining | 2 layers of 15.9mm FireShield | 2 layers of 15.9mm FireShield | 2 layers of 15.9mm FireShield |
Stud Spacing | 610mm maximum on centers | 610mm maximum on centers | 610mm maximum on centers Note: removing insulation can achieve STC 48 |
Systems+ Plasterboard Systems Philippines Manual
Streamline your design and installation process. The Knauf Systems+ Manual delivers proven, fully tested configurations for our high-perfomance ceiling systems and drywall partitions. Download and explore this brochure to access the exact specifications, compliance and installation guidelines needed for your next project.
Everything you need to specify your drywall system
Use our Systemfinder tool or access technical documents in our Download Center.
Specifying Knauf for your wall partition projects?
Are you interested in our Drywall Systems?
Find the right solution for your projects. Speak to our team to discuss specific products.
Frequently Asked Questions
Knauf drywall systems are suitable for a wide range of internal applications, including partitions, internal walls, ceilings, stud walls, shafts and encasements. Designed as complete drywall framing system solutions, they support lightweight construction, fast build methods and passive cooling, while helping deliver reliable performance across different project needs.
Knauf drywall systems are suitable for a broad range of building types, including residential developments, hotels and offices. They are designed to support different functional, acoustic, and performance requirements for fire, moisture and impact.
Yes, our drywall systems are tested and certified to help support compliance with building regulations. For more information on technical specifications, visit our Download Center.
Each drywall system is different, depending on the specification, but our systems typically include gypsum plasterboards, insulation, furrings, linings, and fixings.
Knauf drywall systems are developed to support project compliance and performance requirements, with testing and certification varying by market and system type. Please refer to the relevant local technical documentation to confirm how specific ceiling systems align with applicable building regulations and project standards.
Our most popular drywall systems are the ones for fire resistance and moisture resistance.
