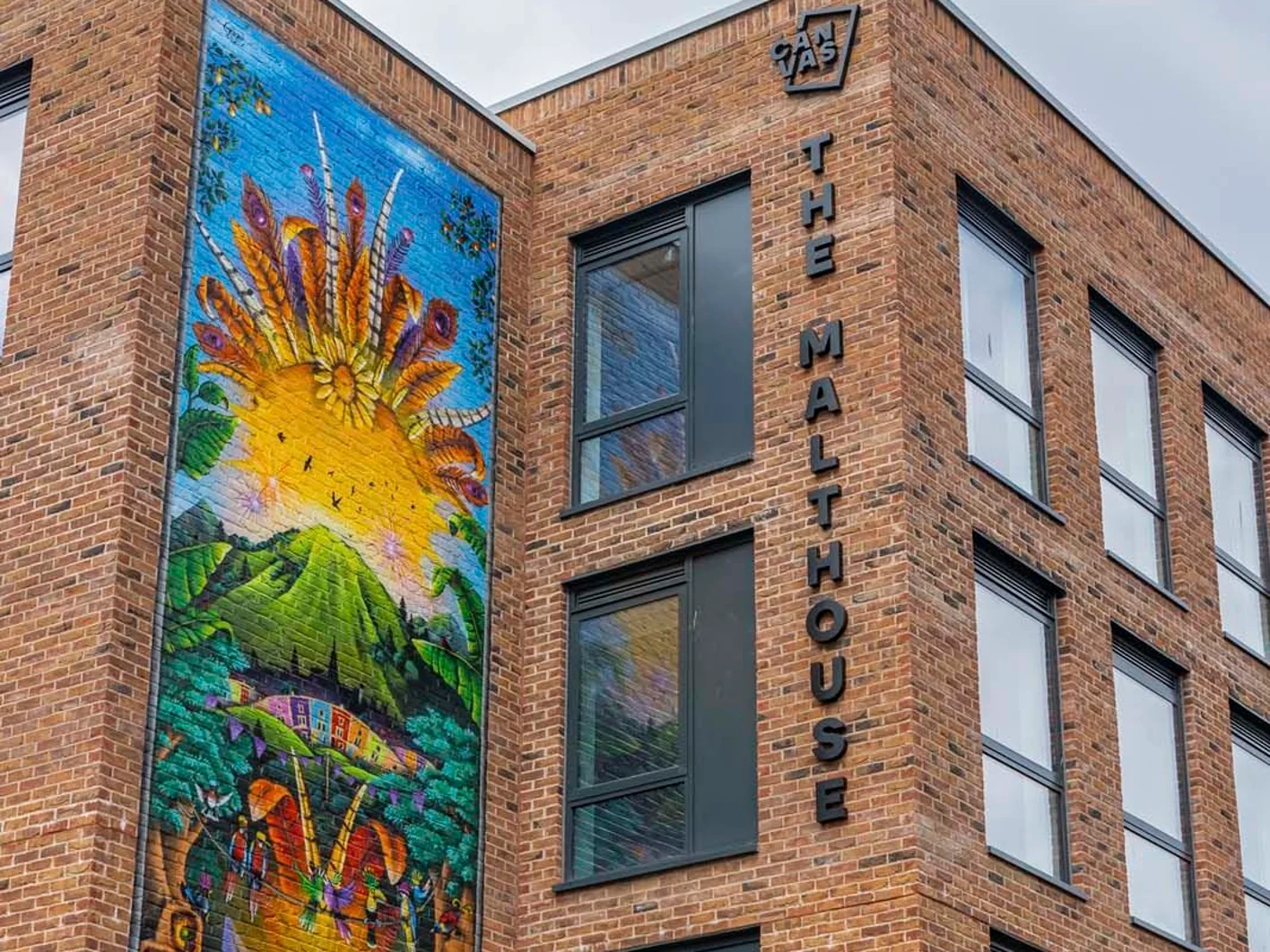

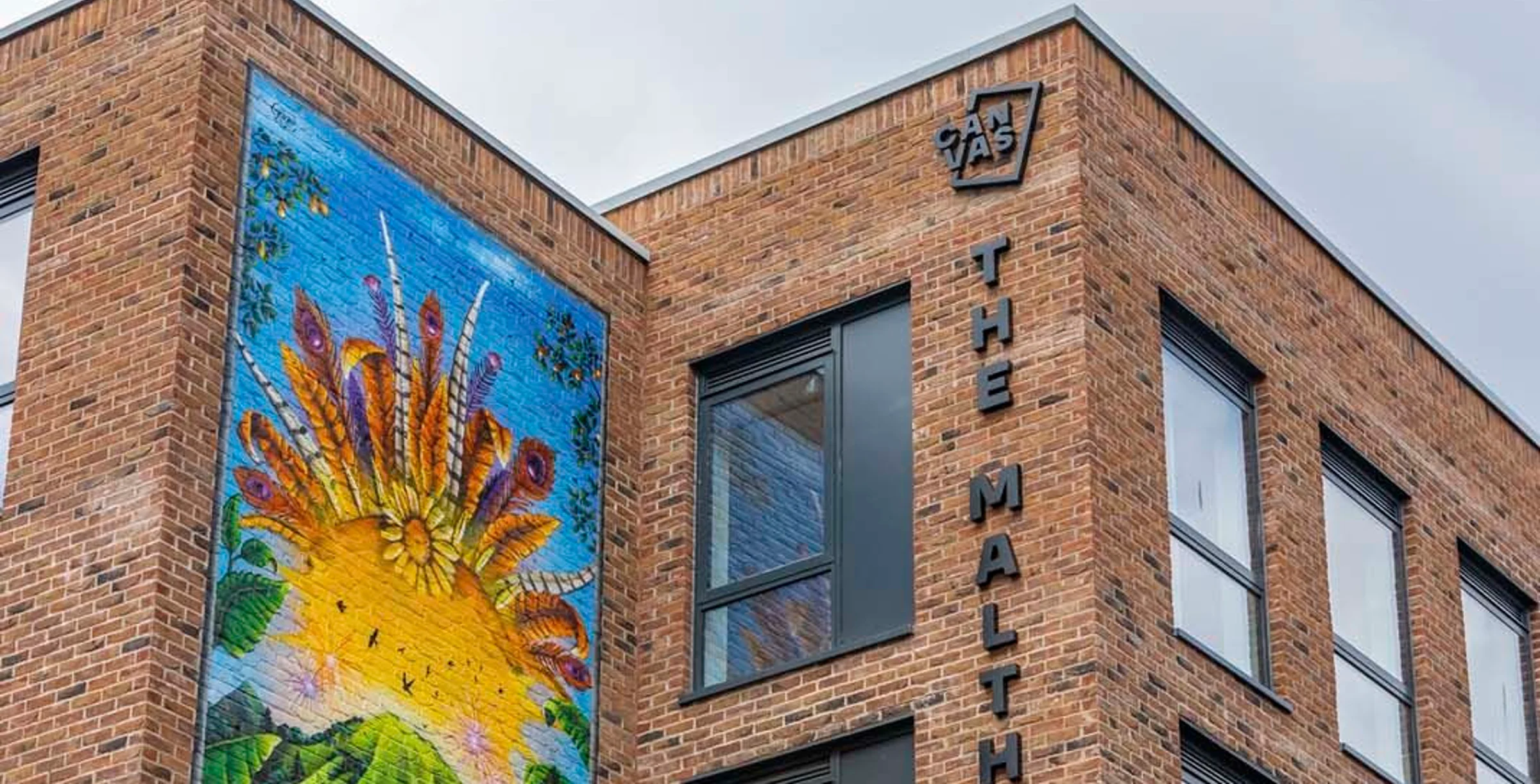

The Malthouse, Bristol

Introduction

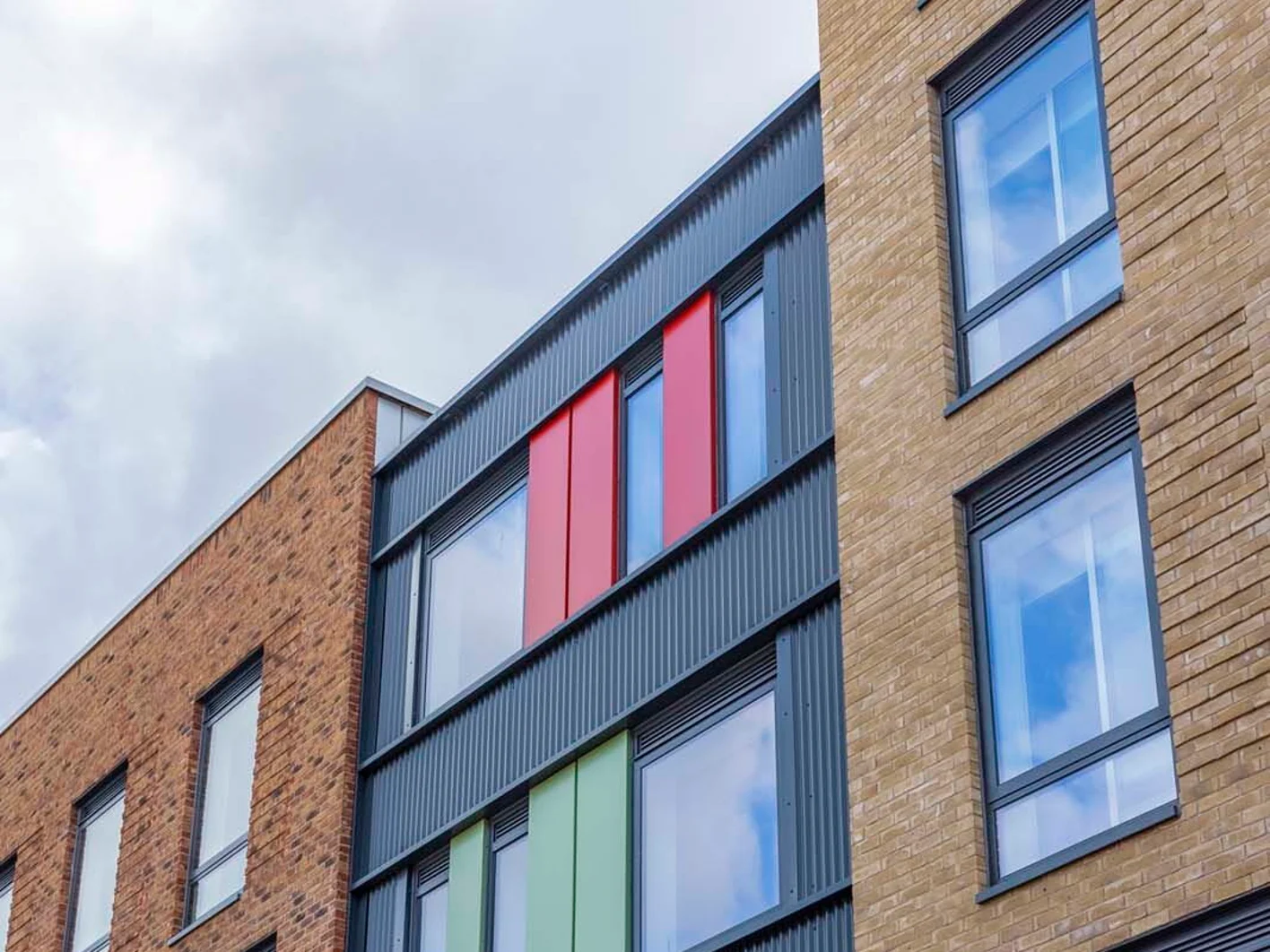

Spread over five stories, the external envelope features a combination of different coloured brickwork and rainscreen cladding. AWW Architects had specified non-combustible insulation to meet the requirements of building regulations in England and Wales, which ban the use of combustible materials on the external walls of certain types of buildings over 18m.

With this in mind, main contractors Watkin Jones contacted Knauf Insulation’s Technical Services Team to determine which insulation solution would be most suitable to achieve the required U-value of 0.19 W/m²K. They also wanted to determine whether the wall build-up would prevent cold bridging and act as a vapour barrier.

The Challenge

The Technical Services Team undertook complex 3D U-value calculations and condensation analysis. 3D U-value calculations completed in line with BS EN 10211 are used for rainscreen projects because they are the most accurate way to ensure a building’s thermal performance matches the initial design. The Technical Services Team provided a fast turnaround on the enquiry and recommended 100mm Rocksilk® RainScreen Slab as the best solution for the project.

Manufactured from rock mineral wool, Rocksilk® RainScreen Slab is non-combustible with the best possible Euroclass A1 reaction to fire classification. This means it will not contribute to the development or spread of fire should it occur. As well as having a British Board of Agrément (BBA) certificate for high rise residential applications, it also has a BBA certificate for use behind masonry façades – making it suitable for the different applications on The Malthouse.

The Solution

In addition to fire safety and thermal performance, Rocksilk® RainScreen Slab offers excellent sound reduction characteristics.

More than 8,000m² of Rocksilk® RainScreen Slab insulation was supplied to the development by builders’ merchants M Markovitz Ltd.

Like all Knauf Insulation products, Rocksilk® RainScreen Slab has been designed for ease of installation. Improved robustness means it is easy to manoeuvre into place and it can be installed either way round without compromising performance.

Rocksilk® RainScreen Slab is manufactured with ECOSE® Technology, our unique plant-based binder. It is low-carbon and generates low-VOCs, so it can be used to create better buildings – for occupiers, for installers and for the planet. ECOSE® provides the proven sustainability performance the industry needs, backed up by extensive testing and certification.

Thanks to the technical support from Knauf Insulation, The Malthouse will deliver the students a comfortable, warm, quiet and safe environment where they can enjoy their university years.
