Certificates and Standards
FrameTherm® Roll 32
- Best thermal performance in our range.
- Designed to friction fit between timber studs, which prevents air movement and infiltration through or around the insulation, minimising heat loss.
- Rolls are ready-cut into either 2x570mm or 3x380mm to suit commonly used timber stud spacing.
- Manufactured from mineral wool which provides the best levels of sound absorption and reduction compared to other mainstream insulants.
Applications

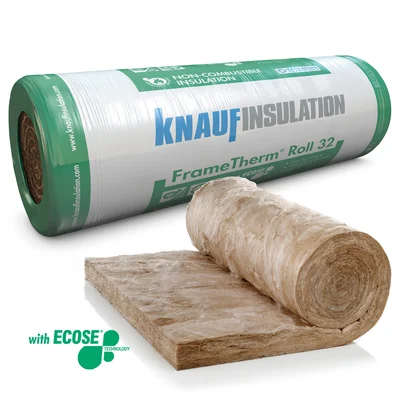

FrameTherm® Roll 32Glass Mineral Wool
Description & Details
FrameTherm® Roll 32 is a glass mineral wool roll, designed for use in timber frame applications between studwork. With a lambda of 0.032W/mK it offers the best thermal conductivity in our range. FrameTherm® Roll 32 is non-combustible with the best possible Euroclass A1 reaction to fire classification, and is manufactured using our unique bio-based binder, ECOSE® Technology.
- Best thermal performance in our range.
- Designed to friction fit between timber studs, which prevents air movement and infiltration through or around the insulation, minimising heat loss.
- Rolls are ready-cut into either 2x570mm or 3x380mm to suit commonly used timber stud spacing.
- Manufactured from mineral wool which provides the best levels of sound absorption and reduction compared to other mainstream insulants.
Documents
EN
| Product Data Sheet | ||
|---|---|---|
FrameTherm Rolls Datasheet.PDF /
Aug 2025 /
1.01 MB /
5 pages | ||
| Brochure | ||
|---|---|---|
Acoustic Insulation - What You Need to Know.PDF /
Jan 2025 /
3.47 MB /
3 pages | ||
Knauf Insulation Solutions Guide UK.PDF /
- /
21.46 MB /
167 pages | ||
| Safety Data Sheet | ||
|---|---|---|
Glass Mineral Wool with ECOSE® Technology - Safety Data Sheet.PDF /
Feb 2025 /
160.00 KB /
9 pages | ||
| Environmental Product Declaration | ||
|---|---|---|
FrameTherm® Roll 32, FactoryClad Roll 32, Kalzip Plus 32, Rafter Roll 32 EPD UK&I.PDF /
Oct 2023 /
730.00 KB /
17 pages | ||
| Sustainability | ||
|---|---|---|
Glass Mineral Wool - BREEAM Helpsheet.PDF /
Feb 2025 /
40.00 KB /
1 page | ||
Declaration of Performance
- Declaration of performance: G4207OPCPR
- Declarations of performance (DoPs), safety data sheets (SDS), and environmental product declarations (EPD) for our offered products can be found via a central Knauf Insulation database.
Technical Data
| Description | Value | Unit | Norm |
|---|---|---|---|
Thermal conductivity declared | 0.032 | W/(mK) | |
Reaction to fire | A1 | EN 13501-1 |
Product Variants & Packaging
FrameTherm® Roll 32
| Material number | EAN / GTIN | R-Value | Thickness | Width | Length | m² per roll | Pieces per pack | m2 per pack | m² per pallet | Packs per pallet |
|---|---|---|---|---|---|---|---|---|---|---|
2435999 | 5012061839258 | 4.35 (m²K)/W | 140 mm | 1,140 mm | 2,800 mm | 3.19 m²/roll | 1 pc/pac | 3.19 m²/pac | 76.61 m²/pal | 24 pac/pal |
292208 | 5012061875089 | 4.35 (m²K)/W | 140 mm | 1,140 mm | 2,800 mm | 3.19 m²/roll | 1 pc/pac | 3.19 m²/pac | 76.61 m²/pal | 24 pac/pal |
2402014 | 5012061810189 | 2.80 (m²K)/W | 90 mm | 1,140 mm | 4,500 mm | 5.13 m²/roll | 1 pc/pac | 5.13 m²/pac | 123.12 m²/pal | 24 pac/pal |
605745 | 5012061995480 | 2.80 (m²K)/W | 90 mm | 1,140 mm | 4,500 mm | 5.13 m²/roll | 1 pc/pac | 5.13 m²/pac | 123.12 m²/pal | 24 pac/pal |
