Certificates and Standards
Heraklith® Tektalan A2 SmartTec
- Available as standard in nature tone, or in any RAL colour upon request
- Aesthetically pleasing; finished with bevelled edges
- Manufactured from mineral wool which provides the best levels of sound absorption and reduction compared to other mainstream insulants.
- Quick installation on site as only 2 fixings required per panel (where the overall thickness is greater than 100mm)** If fire resistance is required, 5 fixings need to be used
Applications
Heraklith® Tektalan A2 SmartTecWood Wool
Description & Details

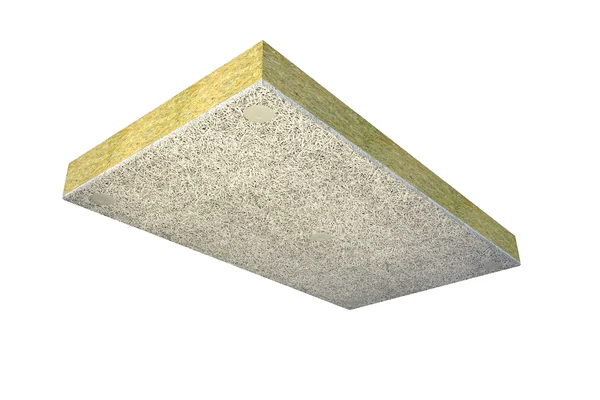

Heraklith® Tektalan A2 SmartTec is a cement-bonded wood wool panel combined with a rock mineral wool insulation slab, used for the thermal & acoustic performance and the decorative finish of structural soffits.It is non-combustible with a Euroclass A2,s1-d0 reaction to fire classification and can provide a fire resistance of up to 180 minutes to concrete floors.
- Available as standard in nature tone, or in any RAL colour upon request
- Aesthetically pleasing; finished with bevelled edges
- Manufactured from mineral wool which provides the best levels of sound absorption and reduction compared to other mainstream insulants.
- Quick installation on site as only 2 fixings required per panel (where the overall thickness is greater than 100mm)** If fire resistance is required, 5 fixings need to be used
- Can be used as an alternative solution in structural soffits
Structural soffit floor
Documents
EN
| Product Data Sheet | ||
|---|---|---|
Heraklith® Tektalan A2 SmartTec Datasheet.PDF /
Sep 2024 /
1.50 MB /
4 pages | ||
Heraklith® DDS Plus Concrete Screw Datasheet.PDF /
Sep 2024 /
1.21 MB /
4 pages | ||
| Brochure | ||
|---|---|---|
Knauf Insulation Solutions Guide UK.PDF /
- /
21.46 MB /
167 pages | ||
| Manual | ||
|---|---|---|
Knauf-Insulation-Heraklith-Installation-Guide-EN-UK.PDF /
Sep 2024 /
3.33 MB /
17 pages | ||
| Environmental Product Declaration | ||
|---|---|---|
Heraklith® Tektalan A2 SmartTec EPD-IES-0021233.PDF /
Sep 2025 /
1.00 MB /
18 pages | ||
| Flyer | ||
|---|---|---|
Knauf Insulation 11 Reasons to Specify Heraklith® Tektalan A2 SmartTec.PDF /
Jan 2025 /
4.06 MB /
2 pages | ||
Product Variants & Packaging
Heraklith® Tektalan A2 SmartTec
| Material number | EAN / GTIN | Thickness | Width | Length | Pieces per pallet | m² per pallet |
|---|---|---|---|---|---|---|
743507 | 9002825199663 | 50 mm | 600 mm | 1,000 mm | 22 pc/pal | 13.20 m²/pal |
743516 | 9002825199748 | 225 mm | 600 mm | 1,000 mm | 5 pc/pal | 3.00 m²/pal |
