Certificates and Standards

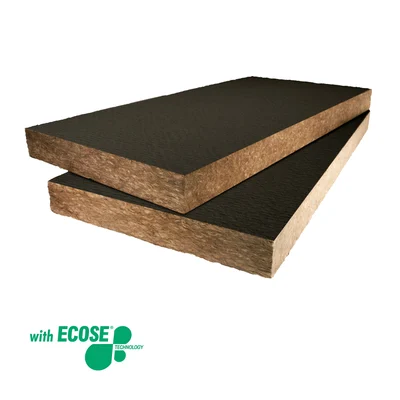

Rocksilk® Soffit Linerboard Standard
- Available both unfaced and with a black tissue facing, for use in non-exposed soffit applications.
- Provides a solution to upgrade thermal performance of existing floors without reducing floor height.
- Can be installed without the need to access areas above the floor.
- Manufactured from mineral wool which provides the best levels of sound absorption and reduction compared to other mainstream insulants to reduce the sound transfer between storeys.
Applications
Rocksilk® Soffit Linerboard StandardRock Mineral Wool
Description & Details
Rocksilk® Soffit Linerboard Standard is a rock mineral wool slab, designed to insulate non-exposed structural soffits in applications such as underground car parks. It is non-combustible with the best possible Euroclass A1 reaction to fire classification, and is manufactured using our unique bio-based binder, ECOSE® Technology.
- Available both unfaced and with a black tissue facing, for use in non-exposed soffit applications.
- Provides a solution to upgrade thermal performance of existing floors without reducing floor height.
- Can be installed without the need to access areas above the floor.
- Manufactured from mineral wool which provides the best levels of sound absorption and reduction compared to other mainstream insulants to reduce the sound transfer between storeys.
- Available with optional fixings which match the colour of Rocksilk® Soffit Linerboard Standard and Extra.
Structural soffit floor
Documents
EN
| Product Data Sheet | ||
|---|---|---|
Rocksilk® Soffit Linerboard Datasheet.PDF /
Feb 2025 /
970.00 KB /
5 pages | ||
Rocksilk® Soffit Linerboard Fixings Datasheet.PDF /
Sep 2024 /
1.61 MB /
5 pages | ||
| Brochure | ||
|---|---|---|
Knauf Insulation Solutions Guide UK.PDF /
- /
21.46 MB /
167 pages | ||
| Manual | ||
|---|---|---|
Rocksilk® Soffit Linerboard Installation Guide.PDF /
Feb 2025 /
2.28 MB /
22 pages | ||
| Safety Data Sheet | ||
|---|---|---|
Rock Mineral Wool with ECOSE® Technology - Safety Data Sheet.PDF /
Sep 2023 /
240.00 KB /
8 pages | ||
| Environmental Product Declaration | ||
|---|---|---|
Rocksilk® RS80 & Soffit Linerboard Std Unfaced EPD-IES-0031082.PDF /
- /
1.02 MB /
19 pages | ||
| Sustainability | ||
|---|---|---|
Rock Mineral Wool - BREEAM Helpsheet.PDF /
Feb 2025 /
40.00 KB /
1 page | ||
Declaration of Performance
- Declaration of performance: R4208MPCPR
- Declarations of performance (DoPs), safety data sheets (SDS), and environmental product declarations (EPD) for our offered products can be found via a central Knauf Insulation database.
Technical Data
| Description | Value | Unit | Norm |
|---|---|---|---|
Thermal conductivity declared | 0.034 | W/(mK) | |
Reaction to fire | A1 | EN 13501-1 |
Product Variants & Packaging
Rocksilk® Soffit Linerboard Standard
| Material number | EAN / GTIN | Thickness | Width | Length | Pieces per pack | m2 per pack | Pieces per pallet | Packs per pallet | m² per pallet |
|---|---|---|---|---|---|---|---|---|---|
673083 | 5012062053066 | 50 mm | 600 mm | 1,200 mm | 6 pc/pac | 4.32 m²/pac | 96 pc/pal | 16 pac/pal | 69.12 m²/pal |
673084 | 5012062053073 | 75 mm | 600 mm | 1,200 mm | 4 pc/pac | 2.88 m²/pac | 64 pc/pal | 16 pac/pal | 46.08 m²/pal |
675217 | 5012062055558 | 130 mm | 600 mm | 1,200 mm | 1 pc/pac | 0.72 m²/pac | 40 pc/pal | 40 pac/pal | 28.80 m²/pal |
675216 | 5012062055084 | 160 mm | 600 mm | 1,200 mm | 1 pc/pac | 0.72 m²/pac | 32 pc/pal | 32 pac/pal | 23.04 m²/pal |
672812 | 5012062052847 | 185 mm | 600 mm | 1,200 mm | 1 pc/pac | 0.72 m²/pac | 28 pc/pal | 28 pac/pal | 20.16 m²/pal |
469973 | 5012061909777 | 220 mm | 600 mm | 1,200 mm | 1 pc/pac | 0.72 m²/pac | 20 pc/pal | 20 pac/pal | 14.40 m²/pal |
